You can use the electrode tree to create Multi-Impression electrodes as Multi-Family electrodes, and specify the undersize of each burn-form.
To define a Multi-Family electrode:
- Select a Multi-Impression electrode from the tree.
- Right-click the selected electrode.
The Multi-Impression Electrode context menu is displayed.
- Select Multi-Impression > Multi-Family Electrode.
The Multi-Impression electrode is converted into a Multi-Family electrode.
The icons represent the undersizes of the burn-forms, which are displayed in brackets after the electrode name.
Burn-form role
You can also use the tree to define the role of a burn-form (in a Multi-Family electrode) as a rougher, semi-finisher, or a finisher. To define a burn-forms role:
- Select a Multi-Family electrode.
- Right-click the selected electrode

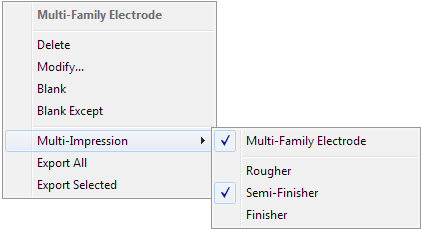

The Multi-Family Electrode context menu is displayed.
- From the context menu select one of the following:
- Multi-Impression > Rougher
- Multi-Impression > Semi-Finisher
- Multi-Impression > Finisher
