You can open a combination table using either of the following 2 ways:
- Click Loads menu > Combination Table,
- Click View menu > Tables; select Combinations in the Tables: Data and Results dialog, click OK.
The table includes 3 tabs:

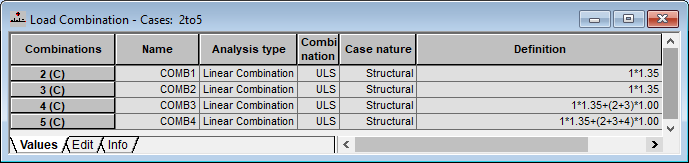

- Values - This tab displays definitions of manual or automatic combinations. To switch between manual and automatic combinations, right-click this tab and select the Table Columns option; in the Combinations dialog select Combination definitions (for manual combinations) or Code combination components (for automatic combinations).

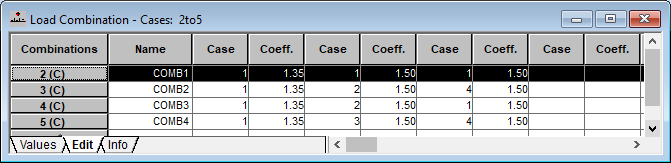

- Edit - Use this tab to modify factor values and load cases that participate in combinations. Note: If a factor is assigned a zero value, the load case to which this factor is ascribed does not participate in the combination.

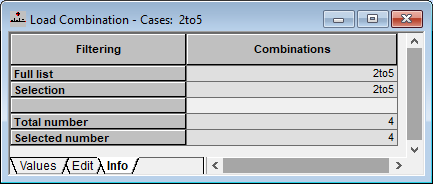

- Info - This tab displays current filters or the selection presented in the table.
Saving a combination table in the matrix-like format makes it easier to define and navigate through factor values and to define combinations after copying a table from MS Excel© to Robot.
