Define a tube connection dialog

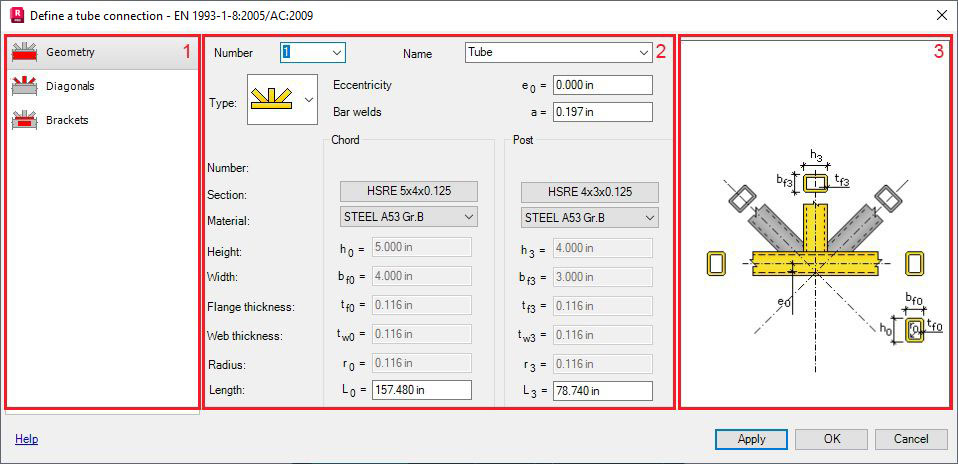

The dialog for generation of a truss node connection (tubular sections) has 3 main parts:

1. On the left are options for selecting a component used to define a steel connection:
   • geometry
   • diagonals
   • brackets.
2. In the center, you can define parameters of a selected element of the steel connection.
3. On the right is a graphical view of a defined element of the tube truss node connection.
