    Minimum thickness

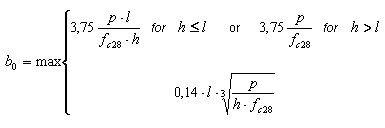

    The minimum thickness of a deep beam should equal

    If a deep beam is sufficiently stiffened longitudinally in both the upper and the lower zone (stiffening elements reach the supports), then the first condition should additionally cover the verification of the following relation:

    (p/h*fc28).

    Parent topic: Calculations of reinforcement of deep beams
