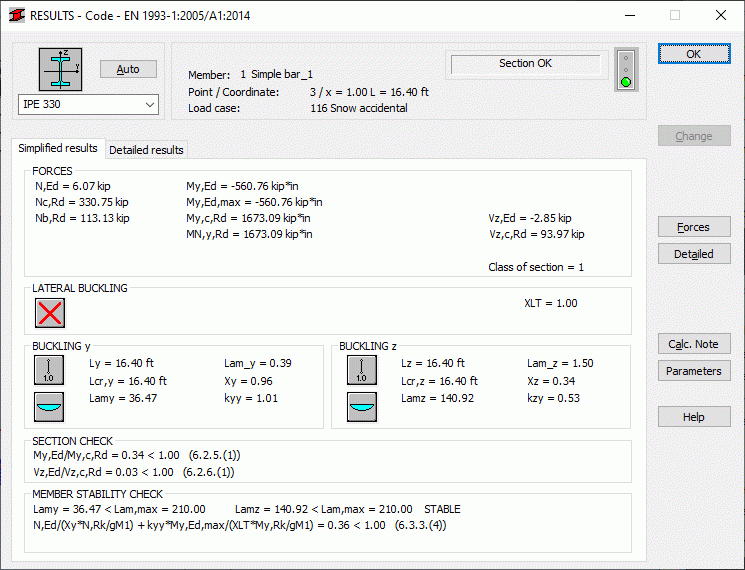

Detailed Results

Access

• Click any row in the simplified results dialog.

Dialog elements

Section properties

This group contains a graphical representation of the selected section.

Enter a section name, e.g. IPE 100, and then click Auto to calculate all the code parameters for the section automatically.

Note: The code parameters are calculated according to the data displayed at the top of the dialog, such as the bar number, point, and group; and the parameters of the selected section.

Tip: Type the first letters of the section name, and then press enter to display the list of corresponding sections in the drop down box.

Bar

Displays the bar number.

Point / Coordinate

Displays the group number.

Load Case

Displays the load case name, for which verification/design has been performed.

Results

The results can be interpreted as follows:

	Correct section
	Incorrect section Stresses exceed the allowable strength value.
	Unstable section The member slenderness exceeds the allowable slenderness value.
	Incorrect and unstable section The values of allowable stresses and allowable slenderness are exceeded.

Tabs

The detailed results dialog generally contains two tabs:

• Simplified Results
• Detailed Results

Two additional tabs are available with the Eurocode3 and Polish code PN:

• Displacements: contains the calculation results for the serviceability limit state.
• Battens / Lattice: contains the verification results for elements connecting chords of complex members).

Note: The contents of the dialog, depends on the code according to which bar/group code combinations have been performed.

Change

Replaces the original section by the one entered in the Detailed results dialog.

Lattice

Opens the Connections of chords dialog and enable the selection and verification of elements connecting individual member chords.

Note: This option is available when verifying or calculating complex members for Eurocode3 and Polish code PN only.

Forces

Opens the Manual Verification dialog.

The values of internal forces acting on a selected member are moved here.

Detailed

Opens the Detailed Design dialog which allows you to perform a detailed analysis of rolled or welded I-section members.

Calc. note

Opens an editable version of the calculation note where you can modify the data and results of the verification/design.
