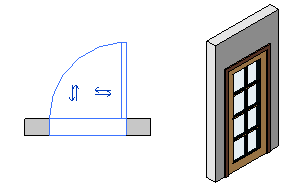

Use the Doors tool to place a door in a wall. Select a door type from the Type Selector.
- Architecture tab
Build panel
(Door)
To change its orientation in the wall, select the door and click its flip controls.
Share
Doors
Topics in this section
- About Doors
Doors are hosted components that you can add to any type of wall. Doors can be added in plan, section, elevation, or 3D views. - About Door Tags
Door tags are annotations that are generally used to enumerate instances of doors within a project by displaying the value of the door’s Mark property. - Place a Door
Use the Door tool to place doors in walls of the building model. An opening is automatically cut into the wall to accommodate the door. - Change the Orientation of a Door
You can change a door’s hinge side (hand) or swing (facing). - Move a Door to a Different Wall
You can reposition a door on the wall on which it was originally placed. To move the door to a different wall, use the Pick New Host tool. - Add a Door to a Curtain Wall
You can add a door to a curtain wall by customizing a curtain panel so that it schedules as a door. - Video: Add a Door to a Curtain Wall
Add a door to a curtain wall by replacing a panel in the curtain wall. - Door Instance Properties
Modify instance properties to change a door's level, sill height, frame type, material, and more. - Door Type Properties
Modify door type properties to change its construction type, function, materials, dimensions, and more.
