Formula Examples

Basic Math

These examples demonstrate basic math functions in formulas.

Shadow_Length

Mounting_Height-Window_Sill_Height

Rel_Angle

90º-Sun_Angle

Max Louver Spacing

Support_Length-(Support_Length*(Desired_Shading_Percent*0.01))

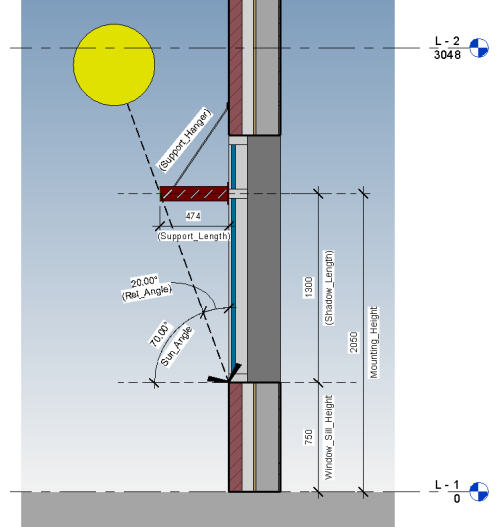

• The Shadow_Length parameter is calculated by taking the mounting height of the family and subtracting the sill height.
• The result is the length of shadow needed for the louver system to fully shade the window.
• The Rel_Angle parameter is calculated by subtracting the sun angle from a constant, 90.

  This parameter will later be used in another formula using trigonometric functions to calculate the length of support needed to cast a shadow the length defined by the Shadow_Length parameter.

• Max Louver Spacing is calculated based on how long the support will be and how much shade is needed.
• The formula first converts a percentage into a decimal value, and then multiplies this value by the support length. The resulting value is the amount of the shade that needs to be covered with louvers.

Rounding and Trigonometric Function

The support length is calculated using a trigonometric function and then rounded up to the nearest millimeter (mm).

Support_Length

roundup((Shadow_Length/1mm)*tan(Rel_Angle))*1mm

• The Support_Length required is a function of Shadow_Length multiplied by the tangent of the relative angle of the sun to the shading device, based on the time of year and the location of the project.

  These variable conditions will change the required length of support needed to fully shade the window.

• The rounding function takes the calculated value and rounds it to the nearest mm. For the rounding function to work, the number being rounded must be unitless.
• In the example formula, the length units are removed from the Shadow_Length parameter by first dividing the parameter by 1mm, and then making the calculation.
• After the number is rounded to the nearest mm, the units are added back to the number by multiplying by 1mm.

Conditional Statements

Conditional statements can be used in a formula to check values of other parameters and return results based on those values. See Use Conditional Statements in Formulas for additional information. In the example, the Support_Hanger parameter is a yes/no parameter used to control the visibility of an additional support for the shade.

Support_Hanger

Support_Length>400mm

Shade_Factor

if(Desired_Shading_Percent<65,"Low",if(Desired_Shading_Percent<79,"Med",if(Desired_Shading_Percent<99,"High","Max.")))

• Once the Support_Length parameter exceeds 400mm, the statement is true, the parameter value is set to "yes," and the additional support will be visible.

  When a conditional statement is used in a formula to define a yes/no parameter, the result if true and result if false are implied and do not need to be written in the syntax of the formula.

• The Shade_Factor parameter uses a nested conditional statement to return 1 of 4 results, Low, Med., High, or Max.
• The check is done against the Desired_Shading_Percent and, based on this value, returns the text result.
• Each successive IF statement is checked. If the condition is not true, then the next IF statement is evaluated until a true result is found.

Array Formula

Number of Supports

(Length/Max_Support_Spacing)+1

Louver Number

(Support_Length/Max Louver Spacing)+1

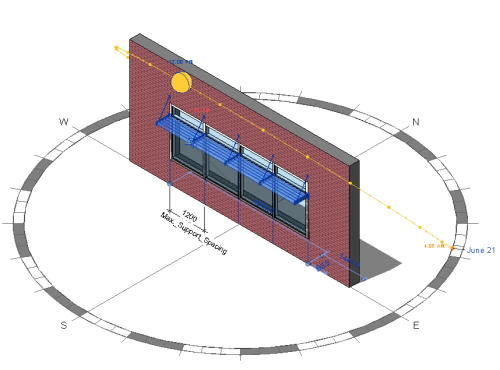

• The Number of Supports parameter is a basic math function used to find the number of supports needed based on the spacing information and the total length of the shading element.
• The Louver Number creates an array value to place louvers into the shade based on the length of the support and the spacing of the louvers needed.
• Both formulas include an additional "+1" to insure the array value is always at least 2.
• Because both of the parameters in this case are defined as integer parameters, the rounding function does not need to be included in the formulas.
