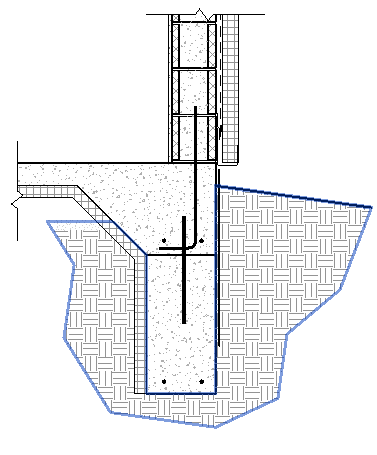

Create a view-specific graphic that fills an area with a pattern. You can use filled regions when detailing a view or creating an annotation family.
- Annotate tab
Detail panelRegion drop-down
(Filled Region)
Share
Filled Regions
Topics in this section
- About Filled Regions
The Filled Region tool creates a 2-dimensional, view-specific graphic with a boundary line style and fill pattern within the closed boundary. The tool is useful for defining a filled area in a detail view or for adding a filled region to an annotation family. - About Filled Regions in Drafting Views
The behavior of filled regions changes in drafting views, depending on the display setting. - Create a Filled Region
Use the Filled Region tool to define a filled area in a detail view or add a filled region to an annotation family. - Work with Filled Regions
You can change the size and properties of a filled region, and determine its area.
Parent topic: Detailing
