Rotate a Revision Schedule

Control the placement and look of revision schedules.

You can rotate a revision schedule 90 degrees clockwise or counterclockwise on a title block. To rotate a revision schedule, modify the title block family. You cannot rotate a revision schedule on a particular sheet in a project.

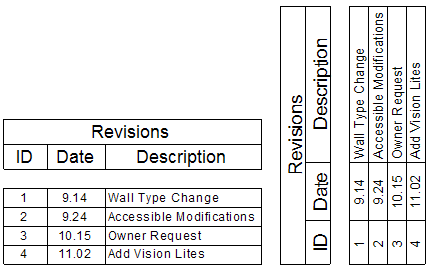

A horizontal revision schedule (left), and a rotated revision schedule (right)

To rotate a revision schedule

1. Open the title block for editing.
2. In the drawing area, select the revision schedule of the title block.

   The status bar displays Schedule Graphics : Schedule Graphics : Revision Schedule.

3. On the Options Bar, for Rotation on Sheet, select the desired rotation option.
4. Reposition the rotated revision schedule on the title block, if needed.
5. (Optional) Define a fixed height for the revision schedule.

   Defining a fixed height ensures that the revision schedule does not expand beyond the boundaries of a sheet.

6. To save the title block, on the Quick Access toolbar, click (Save).
7. Load the title block into a project.
