Add Site Components

You can place site-specific components, such as trees, utility poles, and fire hydrants, in a site plan.

Video: Add Site Components

If no site components are loaded into your project, a message indicates that no appropriate families are loaded.

To add site components

1. Open a view that displays the toposolid to modify.
2. Click Site tabModel Site panel (Site Component).
3. Select the desired component from the Type Selector.
4. Click in the drawing area to add one or more components.

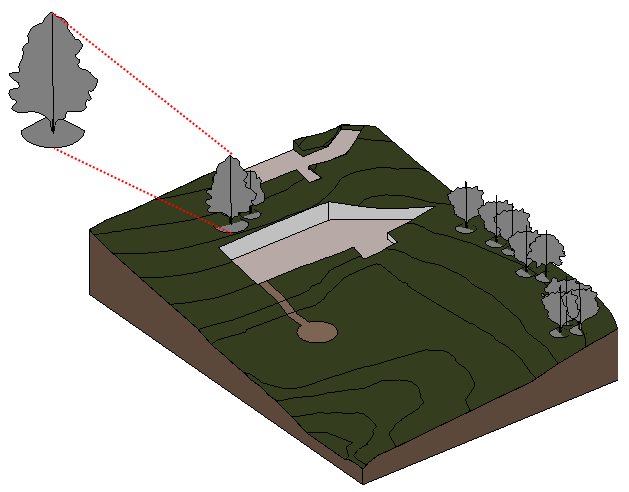

Example
