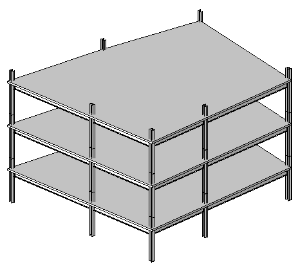

Use the structural floor tool to add structural floors to a building model.
- Architecture tab
Build panelFloor drop-down
(Floor: Structural) - Structure tabStructure panelFloor drop-down (Floor: Structural)
Share
Structural Floors
Topics in this section
- About Structural Floors
You create structural floors by defining their boundaries, either by picking walls or using drawing tools. - Create a Structural Floor
Create a structural floor by selecting support framing, walls, or by sketching the extent of the floor. - Add a Cantilever to a Structural Floor
Add cantilever offsets by editing the boundary sketch of the structural floor. - Specify the Span Direction of a Structural Floor
Use the floor span direction symbol to change the orientation of the steel deck. - Video: Apply Structural Deck Profiles
Adjust the metal deck profile shape and layers to better conform to documentation requirements. - Change the Profile of a Composite Deck
Adjust the deck profile to better conform to as-built documentation requirements. - About Sloped Structural Floors
Use sloped surface tools to edit a structural floor. - Add an Opening in a Structural Floor
Use openings to allow for shafts and ramps between levels. - Add a Drop Panel to a Structural Floor
Add drop panels to reinforce a structural floor at column locations - Structural Floor Instance Properties
Modify instance properties to change a structural floor's level, height offset, slope, and more. - Structural Floor Type Properties
Modify type properties to change a structural floor's structure, default thickness, function, and more.
Parent topic: Structures
