Duplicate the Part

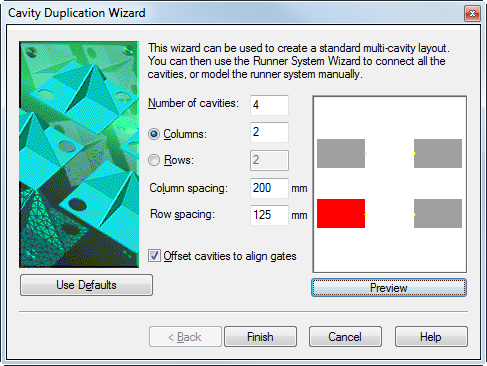

In this task, you use the Cavity Duplication Wizard to create a 4-cavity tool.

1. Geometry

   Click Home > Geometry > Modify > Cavity Duplication.



2. Enter number of Cavities 4.

3. Enter number of Columns 2.

4. Enter Column spacing 200.

5. Enter Row spacing 125.

6. Click Preview.

7. Click Finish.

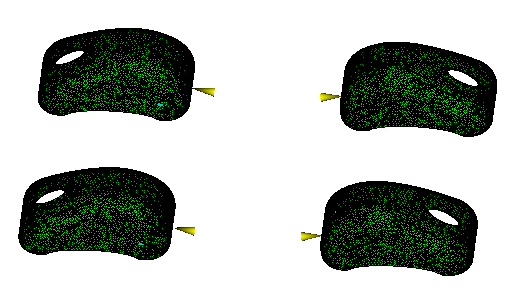

This study looks like the image.
