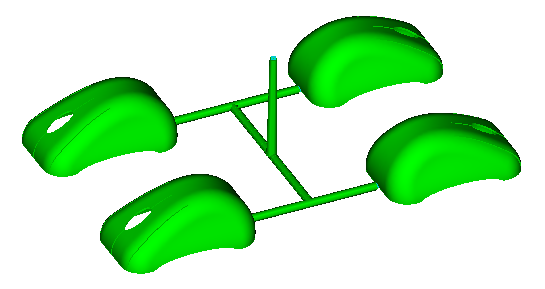

In this tutorial, you set up and run a Filling + Packing analysis on a 4-cavity tool on the computer mouse cover. You evaluate the fill balance between the parts, the pressure to fill the tool, the shrinkage on the part, and the cooling time. This tutorial continues where filling analysis left off. You do not have to complete the filling analysis tutorial to complete this one, but review the steps to prepare for this tutorial. If you would like to review the filling tutorial click here. In this tutorial, you will do the following:
- Create a Project
- Import the Study
- Duplicate the part
- Create the runners
- Set the Analysis Sequence
- Input the Process Settings and run the analysis
- Review Results
Before you begin, click here to download the model files for all the quick start tutorials.
When you are ready, click here to start the tutorial.
