Review Pressure Results

In this task, you interpret the pressure results.

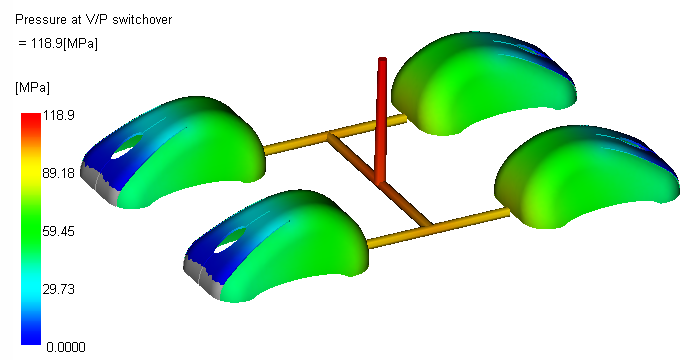

1. Click Pressure at V/P switchover in the study tasks list.



2. Click Play.

3. Rotate, pan, and zoom as necessary to see the Pressure results.

   The pressure at V/P switch-over is best when under 75% of the machine capacity. For a typical machine with a capacity of 140 MPa (~20,000 psi) the pressure acceptable when under 100 MPa (~14,500 psi).

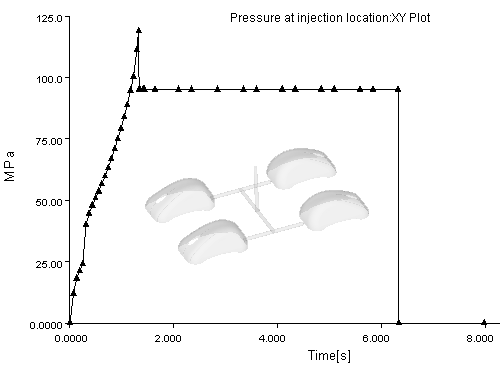

4. Click Pressure at injection location:XY Plot.



   Here you can see how the pressure builds up and drops 20% for the packing phase.
