2-D Weldment Model

In this tutorial, we will step through the creation of a 2-D weldment in Autodesk Simulation.  The model is used in the 2-D Weldment Static Stress Analysis tutorial.



Features Illustrated:

• Create construction objects
• Copy objects
• Intersect objects
• Mirror objects

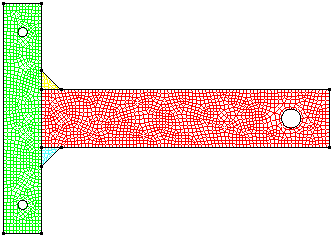

• Create a 2-D mesh

Next

Topics in this section

• Problem Description

• Create the Model

• Create the Vertical Part

• Create the Horizontal Part

• Intersect the Vertical Part

• Create the Welds

• Intersect the Vertical and Horizontal Parts

• Generate the 2-D Mesh
