Assign the Translational Constraint

In this step we assign a constraint to the buckle part to prevent it from moving as the spring clip is inserted into it.

1. Click Setup Constraints General Constraint.

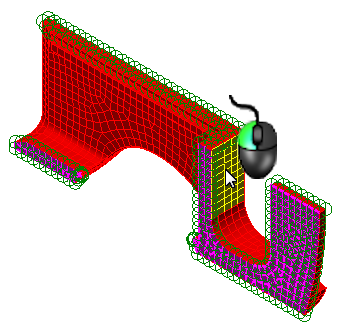

2. On the buckle part, select the surface perpendicular to the X-axis, as shown:

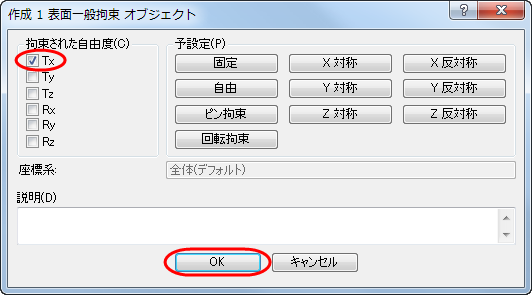

3. Check Tx, and click OK.

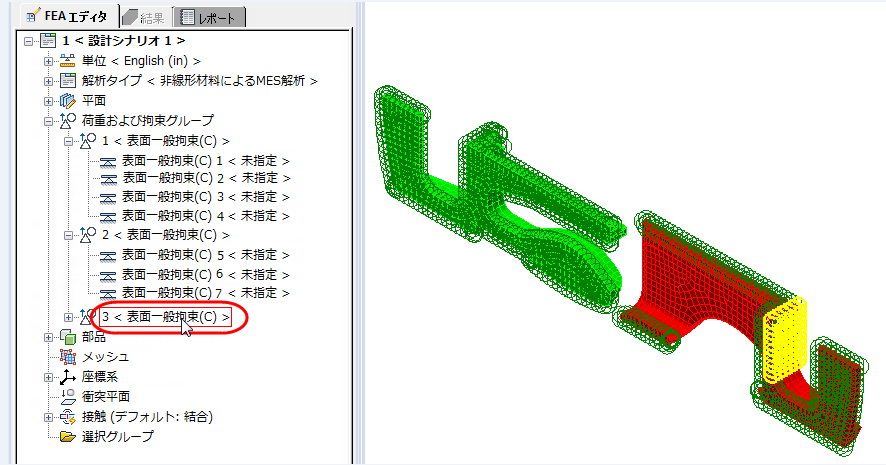

What it should look like…
