Generate the Mesh

In this step, we define and generate the mesh on the model.

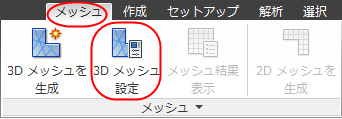

1. Click Mesh 3D Mesh Settings.

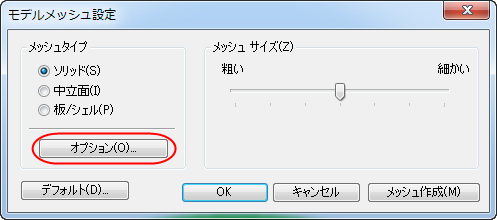

2. Click Options....

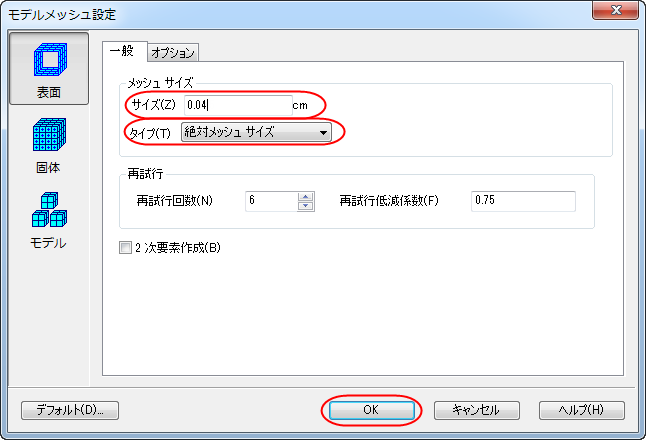

3. Set the Type to Absolute mesh size. Enter a size of 0.04, and click OK.

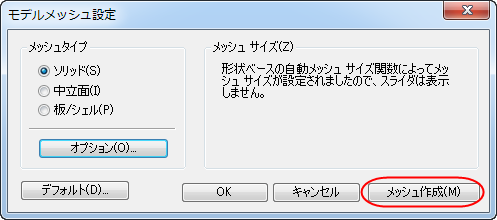

4. Click Mesh model.

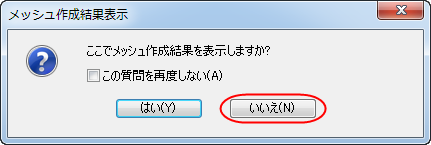

When asked if you want to view the meshing results, click No.

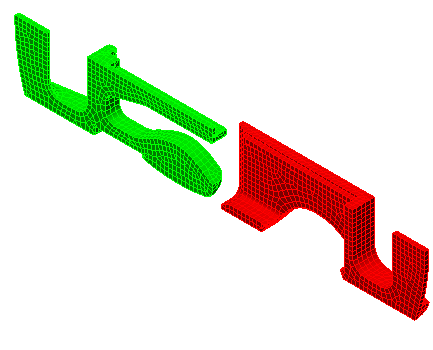

What it should look like…
