Adds or removes a jog line on a linear or aligned dimension.
Access Methods
Button
Toolbar: Annotation tool set
Dimensions tool group Jog Line Menu:
Dimension
Jogged Linear
Summary

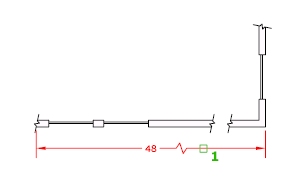

Jog lines in a dimension indicate a break in the objects being dimensioned. The dimension value represents the actual distance, rather than the measured distance in the drawing.
List of Prompts
The following prompts are displayed.
Select dimension to add jog or [Remove]: Select a linear or aligned dimension
- Add Jog
-
Specifies the linear or aligned dimension to which to add a jog. You are prompted for the location of the jog.
Press Enter to place the jog at the midpoint between the dimension text and the first extension line or the midpoint of the dimension line based on the location of the dimension text
- Remove
-
Specifies the linear or aligned dimension from which to remove the jog.
