Creates evenly spaced point objects or blocks along the length or perimeter of an object.
Access Methods
Menu:
Draw
Point
Divide
List of Prompts
The following prompts are displayed.
Select object to divide: Use an object selection method
Enter number of segments or [Block]: Enter a value from 2 through 32,767, or enter b
Number of Segments

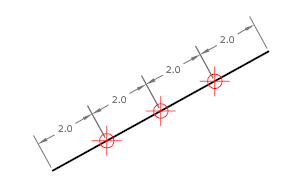

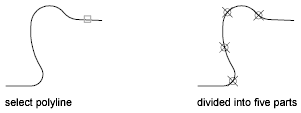

Places point objects at equal intervals along the selected objects.
Use DDPTYPE to set the style and size of all point objects in a drawing.
Block
Places blocks at equal intervals along the selected object. If the block has variable attributes, these attributes are not included.
- Yes
-
Specifies that the X axes of the inserted blocks be tangent to, or collinear with, the divided object at the dividing points.
- No
-
Aligns the blocks according to their normal orientation.
The illustration shows an arc divided into five equal parts using a block consisting of a vertically oriented ellipse.
