Tutorial 1 - 2D Machining

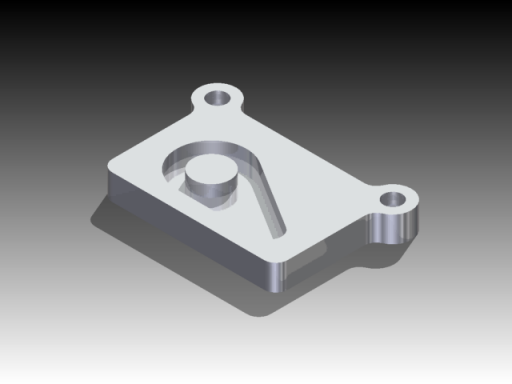

In this tutorial, you will learn how to machine the part shown above using the following procedures:

• Facing
• Contouring
• Pocket Machining
• Counterboring
• Drilling
• Tapping
• Post Processing

Before proceeding, please open the part Tutorial1.ipt in Inventor HSM.

Note: The files used in these tutorials, as well as other sample datasets, can be found in the C:\Users\Public\Documents\Autodesk\Inventor HSM 2015\Examples subfolder.
