BaseObject Class Reference

This reference page is linked to from the following overview topics:

---

Class Description

The base class for anything with a representation in the 3D viewport (e.g. objects and modifiers).

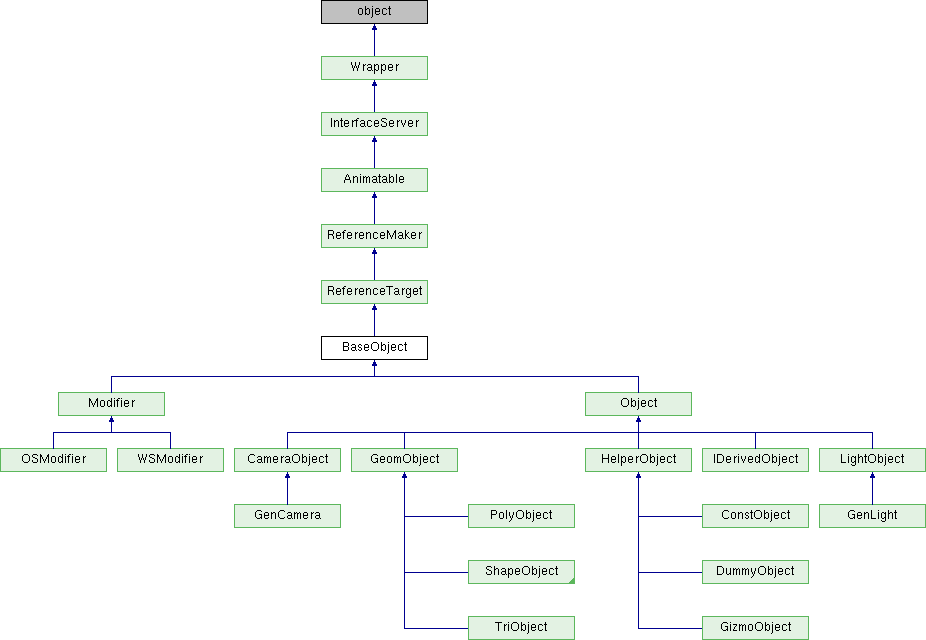

Inheritance diagram for BaseObject:

Public Member Functions
def	ActivateSubSelSet
def	ChangeTopology
def	ClearSelection
def	ForceNotify
def	GetLocalBoundBox
def	GetNamedSelSetName
def	GetNumNamedSelSets
def	GetNumSubObjTypes
def	GetObjectName
def	GetSubObjectLevel
def	GetSubObjType
def	GetSubObjTypeName
def	GetWorldBoundBox
def	HasUVW
def	HasViewDependentBoundingBox
def	HitTest
def	InvertSelection
def	Move
def	NewSetFromCurSel
def	OKToChangeTopology
def	RemoveSubSelSet
def	Rotate
def	Scale
def	SelectAll
def	SetGenUVW
def	SetNamedSelSetName
def	SetupNamedSelDropDown
def	SupportsNamedSubSels
def	TransformCancel
def	TransformFinish
def	TransformHoldingFinish
def	TransformHoldingStart
def	TransformStart
Public Member Functions inherited from ReferenceTarget
def	NotifyTarget
Public Member Functions inherited from ReferenceMaker
def	ClearFlagInHierarchy
def	DeleteMe
def	DeleteReference
def	FindRef
def	GetNumRefs
def	GetReference
def	NotifyChanged
def	NotifyDependents
def	ReplaceReference
def	RescaleWorldUnits
Public Member Functions inherited from Animatable
def	AddNewKey
def	AssignController
def	CanAssignController
def	CanCopyAnim
def	CanCopyTrack
def	CanDeleteSubAnim
def	CanMakeUnique
def	ClearAFlag
def	ClearAFlagEx
def	ClearFlagBit
def	ClearFlagInAllAnimatables
def	CopyKeysFromTime
def	DeleteKeyAtTime
def	DeleteKeyByIndex
def	DeleteKeys
def	DeleteSubAnim
def	DeleteTime
def	DoesSupportTimeOperations
def	EditTimeRange
def	FreeCaches
def	GetAnimByHandle
def	GetAnimHandle
def	GetClassID
def	GetClassName
def	GetCustomAttributeContainer
def	GetHasSubElements
def	GetKeyIndex
def	GetKeyTime
def	GetNextKeyTime
def	GetNodeName
def	GetNumKeys
def	GetNumSubAnims
def	GetParameterBlock
def	GetSubAnim
def	GetSubAnimName
def	GetSuperClassID
def	GetTimeRange
def	InsertTime
def	IsAnimated
def	IsKeyAtTime
def	IsSubClassOf
def	MoveKeys
def	ReverseTime
def	ScaleKeyValues
def	ScaleTime
def	SetAFlag
def	SetAFlagEx
def	SetFlagBit
def	SubNumToRefNum
def	TestAFlag
def	TestAFlagEx
def	TestFlagBit
Public Member Functions inherited from InterfaceServer
def	GetInterface
Public Member Functions inherited from Wrapper
def	GetUnwrappedPtr

Static Public Attributes
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceTarget
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceMaker
tuple	NumRefs = _swig_property(GetNumRefs)
tuple	Refs = _swig_property(lambda self: (self.GetReference(i) for i in xrange(self.GetNumRefs())))
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Animatable
tuple	AnimHandle = _swig_property(GetAnimHandle)
tuple	ClassID = _swig_property(GetClassID)
tuple	ClearFlagInAllAnimatables = staticmethod(ClearFlagInAllAnimatables)
tuple	GetAnimByHandle = staticmethod(GetAnimByHandle)
tuple	KeyTimes = _swig_property(lambda self: (self.GetKeyTime(i) for i in xrange(self.GetNumKeys())))
tuple	NodeName = _swig_property(GetNodeName)
tuple	NumSubAnims = _swig_property(GetNumSubAnims)
tuple	ParameterBlock = _swig_property(GetParameterBlock)
tuple	SubAnimNames = _swig_property(lambda self: (self.GetSubAnimName(i) for i in xrange(self.GetNumSubAnims())))
tuple	SubAnims = _swig_property(lambda self: (self.GetSubAnim(i) for i in xrange(self.GetNumSubAnims())))
tuple	SuperClassID = _swig_property(GetSuperClassID)
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from InterfaceServer
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Wrapper
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')

Member Function Documentation

def ActivateSubSelSet	(		self,
			args
	)

ActivateSubSelSet(BaseObject self, WStr setName)

def ChangeTopology

(

self

)

ChangeTopology(BaseObject self) -> bool

def ClearSelection	(		self,
			args
	)

ClearSelection(BaseObject self, int selLevel)

def ForceNotify	(		self,
			args
	)

ForceNotify(BaseObject self, Interval i)

def GetLocalBoundBox	(		self,
			args
	)

GetLocalBoundBox(BaseObject self, INode inode, Viewport vp, TimeValue t=Autodesk::Max::Now()) -> Box3
GetLocalBoundBox(BaseObject self, INode inode, Viewport vp) -> Box3

def GetNamedSelSetName	(		self,
			args
	)

GetNamedSelSetName(BaseObject self, int i) -> WStr

def GetNumNamedSelSets

(

self

)

GetNumNamedSelSets(BaseObject self) -> int

def GetNumSubObjTypes

(

self

)

GetNumSubObjTypes(BaseObject self) -> int

def GetObjectName

(

self

)

GetObjectName(BaseObject self) -> wchar_t const *

def GetSubObjectLevel

(

self

)

GetSubObjectLevel(BaseObject self) -> int

def GetSubObjType	(		self,
			args
	)

GetSubObjType(BaseObject self, int i) -> InterfaceServer

def GetSubObjTypeName	(		self,
			args
	)

GetSubObjTypeName(BaseObject self, int i) -> WStr

def GetWorldBoundBox	(		self,
			args
	)

GetWorldBoundBox(BaseObject self, INode inode, Viewport vp, TimeValue t=Autodesk::Max::Now()) -> Box3
GetWorldBoundBox(BaseObject self, INode inode, Viewport vp) -> Box3

def HasUVW	(		self,
			args
	)

HasUVW(BaseObject self) -> bool
HasUVW(BaseObject self, int mapChannel) -> bool

def HasViewDependentBoundingBox

(

self

)

HasViewDependentBoundingBox(BaseObject self) -> bool

def HitTest	(		self,
			args
	)

HitTest(BaseObject self, INode inode, int type, int crossing, int flags, IPoint2 p, Viewport vpt, ModContext mc,
    TimeValue t=Autodesk::Max::Now()) -> int
HitTest(BaseObject self, INode inode, int type, int crossing, int flags, IPoint2 p, Viewport vpt, ModContext mc) -> int
HitTest(BaseObject self, INode inode, int type, int crossing, int flags, IPoint2 p, Viewport vpt, TimeValue t=Autodesk::Max::Now()) -> int
HitTest(BaseObject self, INode inode, int type, int crossing, int flags, IPoint2 p, Viewport vpt) -> int

def InvertSelection	(		self,
			args
	)

InvertSelection(BaseObject self, int selLevel)

def Move	(		self,
			args
	)

Move(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val, bool localOrigin=True, TimeValue t=Autodesk::Max::Now())
Move(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val, bool localOrigin=True)
Move(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val)

def NewSetFromCurSel	(		self,
			args
	)

NewSetFromCurSel(BaseObject self, WStr setName)

def OKToChangeTopology	(		self,
			args
	)

OKToChangeTopology(BaseObject self, WStr modName) -> bool

def RemoveSubSelSet	(		self,
			args
	)

RemoveSubSelSet(BaseObject self, WStr setName)

def Rotate	(		self,
			args
	)

Rotate(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Quat val, bool localOrigin=True, TimeValue t=Autodesk::Max::Now())
Rotate(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Quat val, bool localOrigin=True)
Rotate(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Quat val)

def Scale	(		self,
			args
	)

Scale(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val, bool localOrigin=True, TimeValue t=Autodesk::Max::Now())
Scale(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val, bool localOrigin=True)
Scale(BaseObject self, Matrix3 partm, Matrix3 tmAxis, Point3 val)

def SelectAll	(		self,
			args
	)

SelectAll(BaseObject self, int selLevel)

def SetGenUVW	(		self,
			args
	)

SetGenUVW(BaseObject self, bool sw)
SetGenUVW(BaseObject self, int mapChannel, bool sw)

def SetNamedSelSetName	(		self,
			args
	)

SetNamedSelSetName(BaseObject self, int i, WStr newName)

def SetupNamedSelDropDown

(

self

)

SetupNamedSelDropDown(BaseObject self)

def SupportsNamedSubSels

(

self

)

SupportsNamedSubSels(BaseObject self) -> bool

def TransformCancel	(		self,
			args
	)

TransformCancel(BaseObject self, TimeValue t)

def TransformFinish	(		self,
			args
	)

TransformFinish(BaseObject self, TimeValue t)

def TransformHoldingFinish	(		self,
			args
	)

TransformHoldingFinish(BaseObject self, TimeValue t)

def TransformHoldingStart	(		self,
			args
	)

TransformHoldingStart(BaseObject self, TimeValue t)

def TransformStart	(		self,
			args
	)

TransformStart(BaseObject self, TimeValue t)
