INode Class Reference
INode Class Reference
This reference page is linked to from the following overview topics: Class Description
The interface to scene graph nodes. In addition to pointers to its a parent and children, a node contains references to the material and object and maintains information about its translation, rotation, and scale in 3D space.

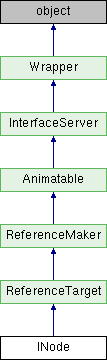

Inheritance diagram for INode:
Static Public Attributes | |
| tuple | AllEdges = _swig_property(GetAllEdges, SetAllEdges) |
| tuple | ApplyAtmospherics = _swig_property(GetApplyAtmospherics, SetApplyAtmospherics) |
| tuple | AttachNodesToGroup = staticmethod(AttachNodesToGroup) |
| tuple | BackfaceCull = _swig_property(GetBackCull, SetBackCull) |
| tuple | BaseObject = _swig_property(GetBaseObject, SetBaseObject) |
| tuple | BoxMode = _swig_property(GetBoxMode, SetBoxMode) |
| tuple | CastShadows = _swig_property(GetCastShadows, SetCastShadows) |
| tuple | Children = _swig_property(lambda self: (self.GetChild(i) for i in xrange(self.GetNumChildren()))) |
| tuple | CloseGroup = staticmethod(CloseGroup) |
| tuple | DeleteNodes = staticmethod(DeleteNodes) |
| tuple | DetachNodesFromGroup = staticmethod(DetachNodesFromGroup) |
| tuple | ExplodeNodes = staticmethod(ExplodeNodes) |
| tuple | FaceCount = _swig_property(GetFaceCount) |
| tuple | FindNodeFromBaseObject = staticmethod(FindNodeFromBaseObject) |
| tuple | FlashNodes = staticmethod(FlashNodes) |
| tuple | Freeze = _swig_property(IsFrozen, Freeze) |
| tuple | GBufferID = _swig_property(GetGBufID, SetGBufID) |
| tuple | GetAffectChildren = staticmethod(GetAffectChildren) |
| tuple | GetINodeByHandle = staticmethod(GetINodeByHandle) |
| tuple | GetINodeByName = staticmethod(GetINodeByName) |
| tuple | GetINodeFromRenderID = staticmethod(GetINodeFromRenderID) |
| tuple | GetPivotMode = staticmethod(GetPivotMode) |
| tuple | GroupNodes = staticmethod(GroupNodes) |
| tuple | Hide = _swig_property(IsNodeHidden, Hide) |
| tuple | IgnoreExtents = _swig_property(GetIgnoreExtents, SetIgnoreExtents) |
| tuple | InheritVisibility = _swig_property(GetInheritVisibility, SetInheritVisibility) |
| tuple | IsRoot = _swig_property(GetIsRoot) |
| tuple | LayerName = _swig_property(GetLayerName) |
| tuple | LocalPosition = _swig_property(GetLocalPosition, SetLocalPosition) |
| tuple | LocalRotation = _swig_property(GetLocalRotation, SetLocalRotation) |
| tuple | LocalScaling = _swig_property(GetLocalScale, SetLocalScale) |
| tuple | LocalTransform = _swig_property(GetLocalTM, SetLocalTM) |
| tuple | Material = _swig_property(GetMaterial, SetMaterial) |
| tuple | Modifiers = _swig_property(lambda self: (self.GetModifier(i) for i in xrange(self.GetNumModifiers()))) |
| tuple | MotionBlurEnabled = _swig_property(GetMotionBlurOnOff, SetMotionBlurOnOff) |
| tuple | MotionBlurMultiplier = _swig_property(GetImageBlurMultiplier, SetImageBlurMultiplier) |
| tuple | MotionBlurType = _swig_property(GetMotionBlurType, SetMotionBlurType) |
| tuple | Name = _swig_property(GetName, SetName) |
| tuple | NeverDegrade = _swig_property(GetNeverDegrade, SetNeverDegrade) |
| tuple | NodeColorPicker = staticmethod(NodeColorPicker) |
| tuple | NumChildren = _swig_property(GetNumChildren) |
| tuple | NumModifiers = _swig_property(GetNumModifiers) |
| tuple | Object = _swig_property(GetObject, SetObject) |
| tuple | OpenGroup = staticmethod(OpenGroup) |
| tuple | Parent = _swig_property(GetParent, SetParent) |
| tuple | Position = _swig_property(GetWorldPosition, SetWorldPosition) |
| tuple | PrimaryVisibility = _swig_property(GetPrimaryVisibility, SetPrimaryVisibility) |
| tuple | ReceiveShadows = _swig_property(GetReceiveShadows, SetReceiveShadows) |
| tuple | Renderable = _swig_property(GetRenderable, SetRenderable) |
| tuple | RenderOccluded = _swig_property(GetRenderOccluded, SetRenderOccluded) |
| tuple | Rotation = _swig_property(GetWorldRotation, SetWorldRotation) |
| tuple | Scaling = _swig_property(GetWorldScale, SetWorldScale) |
| tuple | SecondaryVisibility = _swig_property(GetSecondaryVisibility, SetSecondaryVisibility) |
| tuple | SeeThrough = _swig_property(GetSeeThrough, SetSeeThrough) |
| tuple | SetAffectChildren = staticmethod(SetAffectChildren) |
| tuple | SetNodeAttribute = staticmethod(SetNodeAttribute) |
| tuple | SetPivotMode = staticmethod(SetPivotMode) |
| tuple | ShadeVertexColors = _swig_property(GetShadeVertexColors, SetShadeVertexColors) |
| tuple | ShowFrozenWithMtl = _swig_property(GetShowFrozenWithMtl, SetShowFrozenWithMtl) |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
| tuple | Trajectory = _swig_property(GetTrajectoryON, SetTrajectoryON) |
| tuple | Transform = _swig_property(GetWorldTM, SetWorldTM) |
| tuple | UngroupNodes = staticmethod(UngroupNodes) |
| tuple | VertexColorMapChannel = _swig_property(GetVertexColorMapChannel, SetVertexColorMapChannel) |
| tuple | VertexColorMode = _swig_property(GetVertexColorMode, SetVertexColorMode) |
| tuple | VertexColorType = _swig_property(GetVertexColorType, SetVertexColorType) |
| tuple | VertexCount = _swig_property(GetVertexCount) |
| tuple | VertexTicks = _swig_property(GetVertTicks, SetVertTicks) |
| tuple | Visibility = _swig_property(GetVisibility, SetVisibility) |
| tuple | WireColor = _swig_property(GetWireColor, SetWireColor) |
| tuple | X = _swig_property(GetPositionX, SetPositionX) |
| tuple | Y = _swig_property(GetPositionY, SetPositionY) |
| tuple | Z = _swig_property(GetPositionZ, SetPositionZ) |
| Static Public Attributes inherited from ReferenceTarget | |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
| Static Public Attributes inherited from ReferenceMaker | |
| tuple | NumRefs = _swig_property(GetNumRefs) |
| tuple | Refs = _swig_property(lambda self: (self.GetReference(i) for i in xrange(self.GetNumRefs()))) |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
| Static Public Attributes inherited from Animatable | |
| tuple | AnimHandle = _swig_property(GetAnimHandle) |
| tuple | ClassID = _swig_property(GetClassID) |
| tuple | ClearFlagInAllAnimatables = staticmethod(ClearFlagInAllAnimatables) |
| tuple | GetAnimByHandle = staticmethod(GetAnimByHandle) |
| tuple | KeyTimes = _swig_property(lambda self: (self.GetKeyTime(i) for i in xrange(self.GetNumKeys()))) |
| tuple | NodeName = _swig_property(GetNodeName) |
| tuple | NumSubAnims = _swig_property(GetNumSubAnims) |
| tuple | ParameterBlock = _swig_property(GetParameterBlock) |
| tuple | SubAnimNames = _swig_property(lambda self: (self.GetSubAnimName(i) for i in xrange(self.GetNumSubAnims()))) |
| tuple | SubAnims = _swig_property(lambda self: (self.GetSubAnim(i) for i in xrange(self.GetNumSubAnims()))) |
| tuple | SuperClassID = _swig_property(GetSuperClassID) |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
| Static Public Attributes inherited from InterfaceServer | |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
| Static Public Attributes inherited from Wrapper | |
| tuple | thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag') |
Member Function Documentation
| def AddModifier | ( | self, | |
| args | |||
| ) |
AddModifier(INode self, Modifier m) -> Autodesk::Max::ResCode::Type
| def AddNewXRefFile | ( | self, | |
| args | |||
| ) |
AddNewXRefFile(INode self, Asset file, bool loadNow=True, bool hideInManagerUI=False) -> bool AddNewXRefFile(INode self, Asset file, bool loadNow=True) -> bool AddNewXRefFile(INode self, Asset file) -> bool
| def AlignPivot | ( | self, | |
| args | |||
| ) |
AlignPivot(INode self, TimeValue t, bool moveObject)
| def AlignToParent | ( | self, | |
| args | |||
| ) |
AlignToParent(INode self, TimeValue t)
| def AlignToWorld | ( | self, | |
| args | |||
| ) |
AlignToWorld(INode self, TimeValue t)
| def AttachChild | ( | self, | |
| args | |||
| ) |
AttachChild(INode self, INode node, int keepTM=1) AttachChild(INode self, INode node)
| def AttachNodesToGroup | ( | args | ) |
AttachNodesToGroup(INodeTab nodes, INode pTargetNode) -> bool
| def BindToTarget | ( | self, | |
| args | |||
| ) |
BindToTarget(INode self, INode targNode) -> bool
| def BindXRefFile | ( | self, | |
| args | |||
| ) |
BindXRefFile(INode self, int i) -> bool
| def BoneAsLine | ( | self, | |
| args | |||
| ) |
BoneAsLine(INode self, bool onOff)
| def CenterPivot | ( | self, | |
| args | |||
| ) |
CenterPivot(INode self, TimeValue t, bool moveObject)
| def CloseGroup | ( | args | ) |
CloseGroup(INodeTab nodes, bool selGroup=True) CloseGroup(INodeTab nodes) CloseGroup(bool selGroup=True) CloseGroup()
| def Collapse | ( | self, | |
noWarning = False |
|||
| ) |
Collapse(INode self, bool noWarning=False) Collapse(INode self)
| def CollapseTo | ( | self, | |
| args | |||
| ) |
CollapseTo(INode self, int modIndex, bool noWarning=False) -> bool CollapseTo(INode self, int modIndex) -> bool
| def Convert | ( | self, | |
| args | |||
| ) |
Convert(INode self, Class_ID cid) -> bool
| def CopyProperties | ( | self, | |
| args | |||
| ) |
CopyProperties(INode self, INode other)
| def CreateCopy | ( | self | ) |
CreateCopy(INode self) -> INode
| def CreateInstance | ( | self | ) |
CreateInstance(INode self) -> INode
| def CreateReference | ( | self | ) |
CreateReference(INode self) -> INode
| def CreateTreeCopy | ( | self | ) |
CreateTreeCopy(INode self) -> INode
| def CreateTreeInstance | ( | self | ) |
CreateTreeInstance(INode self) -> INode
| def CreateTreeReference | ( | self | ) |
CreateTreeReference(INode self) -> INode
| def Delete | ( | self, | |
| args | |||
| ) |
Delete(INode self, TimeValue t=Autodesk::Max::Now(), int keepChildPosition=False) Delete(INode self, TimeValue t=Autodesk::Max::Now()) Delete(INode self)
| def DeleteAllXRefs | ( | self | ) |
DeleteAllXRefs(INode self)
| def DeleteModifier | ( | self, | |
| args | |||
| ) |
DeleteModifier(INode self, int n) -> Autodesk::Max::ResCode::Type
| def DeleteNodes | ( | args | ) |
DeleteNodes(INodeTab aNodes, bool aKeepChildTM=True, bool aRedraw=True, bool overrideSlaveTM=False) -> unsigned int DeleteNodes(INodeTab aNodes, bool aKeepChildTM=True, bool aRedraw=True) -> unsigned int DeleteNodes(INodeTab aNodes, bool aKeepChildTM=True) -> unsigned int DeleteNodes(INodeTab aNodes) -> unsigned int
| def DeleteXRefFile | ( | self, | |
| args | |||
| ) |
DeleteXRefFile(INode self, int i) -> bool
| def Deselect | ( | self | ) |
Deselect(INode self)
| def Detach | ( | self, | |
| args | |||
| ) |
Detach(INode self, TimeValue t=Autodesk::Max::Now(), int keepTM=1) Detach(INode self, TimeValue t=Autodesk::Max::Now()) Detach(INode self)
| def DetachNodesFromGroup | ( | args | ) |
DetachNodesFromGroup(INodeTab nodes) -> bool
| def DisposeTemporary | ( | self | ) |
DisposeTemporary(INode self)
| def EvalWorldState | ( | self, | |
| args | |||
| ) |
EvalWorldState(INode self, TimeValue time=Autodesk::Max::Now(), bool evalHidden=True) -> ObjectState EvalWorldState(INode self, TimeValue time=Autodesk::Max::Now()) -> ObjectState EvalWorldState(INode self) -> ObjectState
| def ExplodeNodes | ( | args | ) |
ExplodeNodes(INodeTab nodes) ExplodeNodes()
| def FindNodeFromBaseObject | ( | args | ) |
FindNodeFromBaseObject(ReferenceTarget obj) -> INode
| def FlagForeground | ( | self, | |
| args | |||
| ) |
FlagForeground(INode self, TimeValue t, bool notify=True) FlagForeground(INode self, TimeValue t)
| def FlagXrefChanged | ( | self, | |
| args | |||
| ) |
FlagXrefChanged(INode self, int i)
| def FlashNodes | ( | args | ) |
FlashNodes(INodeTab nodes)
| def Freeze | ( | self, | |
| args | |||
| ) |
Freeze(INode self, bool onOff)
| def GetActualINode | ( | self | ) |
GetActualINode(INode self) -> INode
| def GetAffectChildren | ( | ) |
GetAffectChildren() -> bool
| def GetAllEdges | ( | self | ) |
GetAllEdges(INode self) -> bool
| def GetApplyAtmospherics | ( | self | ) |
GetApplyAtmospherics(INode self) -> bool
| def GetAssemblyBBoxDisplay | ( | self | ) |
GetAssemblyBBoxDisplay(INode self) -> bool
| def GetBackCull | ( | self | ) |
GetBackCull(INode self) -> bool
| def GetBaseObject | ( | self | ) |
GetBaseObject(INode self) -> Object
| def GetBoneAutoAlign | ( | self | ) |
GetBoneAutoAlign(INode self) -> bool
| def GetBoneAxis | ( | self | ) |
GetBoneAxis(INode self) -> int
| def GetBoneAxisFlip | ( | self | ) |
GetBoneAxisFlip(INode self) -> bool
| def GetBoneFreezeLen | ( | self | ) |
GetBoneFreezeLen(INode self) -> bool
| def GetBoneNodeOnOff | ( | self | ) |
GetBoneNodeOnOff(INode self) -> bool
| def GetBoneNodeOnOff_T | ( | self, | |
| args | |||
| ) |
GetBoneNodeOnOff_T(INode self, TimeValue t) -> bool
| def GetBoneScaleType | ( | self | ) |
GetBoneScaleType(INode self) -> int
| def GetBoxMode | ( | self | ) |
GetBoxMode(INode self) -> bool
| def GetCastShadows | ( | self | ) |
GetCastShadows(INode self) -> bool
| def GetChild | ( | self, | |
| args | |||
| ) |
GetChild(INode self, int i) -> INode
| def GetDerivedObject | ( | self | ) |
GetDerivedObject(INode self) -> IDerivedObject
| def GetDesc | ( | self | ) |
GetDesc(INode self) -> FPInterfaceDesc
| def GetDisplayByLayer | ( | self | ) |
GetDisplayByLayer(INode self) -> bool
| def GetFaceCount | ( | self, | |
| args | |||
| ) |
GetFaceCount(INode self, TimeValue t=Autodesk::Max::Now()) -> int GetFaceCount(INode self) -> int
| def GetGBufID | ( | self | ) |
GetGBufID(INode self) -> ULONG
| def GetGenerateCaustics | ( | self | ) |
GetGenerateCaustics(INode self) -> bool
| def GetGenerateGlobalIllum | ( | self | ) |
GetGenerateGlobalIllum(INode self) -> bool
| def GetHandle | ( | self | ) |
GetHandle(INode self) -> ULONG
| def GetIgnoreExtents | ( | self | ) |
GetIgnoreExtents(INode self) -> bool
| def GetImageBlurMultiplier | ( | self, | |
| args | |||
| ) |
GetImageBlurMultiplier(INode self, TimeValue t=Autodesk::Max::Now()) -> float GetImageBlurMultiplier(INode self) -> float
| def GetInheritVisibility | ( | self | ) |
GetInheritVisibility(INode self) -> bool
| def GetINodeByHandle | ( | args | ) |
GetINodeByHandle(ULONG handle) -> INode
| def GetINodeByName | ( | args | ) |
GetINodeByName(wchar_t const * name) -> INode
| def GetINodeFromRenderID | ( | args | ) |
GetINodeFromRenderID(UWORD id) -> INode
| def GetIsRoot | ( | self | ) |
GetIsRoot(INode self) -> bool
| def GetLayer | ( | self | ) |
GetLayer(INode self) -> Layer
| def GetLayerName | ( | self | ) |
GetLayerName(INode self) -> TCHAR const *
| def GetLocalPosition | ( | self, | |
| args | |||
| ) |
GetLocalPosition(INode self, TimeValue t=Autodesk::Max::Now()) -> Point3 GetLocalPosition(INode self) -> Point3
| def GetLocalRotation | ( | self, | |
| args | |||
| ) |
GetLocalRotation(INode self, TimeValue t=Autodesk::Max::Now()) -> Quat GetLocalRotation(INode self) -> Quat
| def GetLocalScale | ( | self, | |
| args | |||
| ) |
GetLocalScale(INode self, TimeValue t=Autodesk::Max::Now()) -> Point3 GetLocalScale(INode self) -> Point3
| def GetLocalTM | ( | self, | |
| args | |||
| ) |
GetLocalTM(INode self, TimeValue t=Autodesk::Max::Now()) -> Matrix3 GetLocalTM(INode self) -> Matrix3
| def GetLookatNode | ( | self | ) |
GetLookatNode(INode self) -> INode
| def GetMaterial | ( | self | ) |
GetMaterial(INode self) -> Mtl
| def GetModifier | ( | self, | |
| args | |||
| ) |
GetModifier(INode self, int n) -> Modifier
| def GetMotionBlurOnOff | ( | self | ) |
GetMotionBlurOnOff(INode self) -> bool
| def GetMotionBlurType | ( | self | ) |
GetMotionBlurType(INode self) -> int
| def GetMotionByLayer | ( | self | ) |
GetMotionByLayer(INode self) -> bool
| def GetName | ( | self | ) |
GetName(INode self) -> wchar_t const *
| def GetNeverDegrade | ( | self | ) |
GetNeverDegrade(INode self) -> bool
| def GetNumChildren | ( | self | ) |
GetNumChildren(INode self) -> int
| def GetNumModifiers | ( | self | ) |
GetNumModifiers(INode self) -> int
| def GetObject | ( | self | ) |
GetObject(INode self) -> Object
| def GetObjectRef | ( | self | ) |
GetObjectRef(INode self) -> Object
| def GetObjectTM | ( | self, | |
| args | |||
| ) |
GetObjectTM(INode self, TimeValue time) -> Matrix3
| def GetObjOffsetPosition | ( | self | ) |
GetObjOffsetPosition(INode self) -> Point3
| def GetObjOffsetRotation | ( | self | ) |
GetObjOffsetRotation(INode self) -> Quat
| def GetObjOffsetScale | ( | self | ) |
GetObjOffsetScale(INode self) -> ScaleValue
| def GetObjOrWSMRef | ( | self | ) |
GetObjOrWSMRef(INode self) -> Object
| def GetObjTMAfterWSM | ( | self, | |
| args | |||
| ) |
GetObjTMAfterWSM(INode self, TimeValue time) -> Matrix3
| def GetObjTMBeforeWSM | ( | self, | |
| args | |||
| ) |
GetObjTMBeforeWSM(INode self, TimeValue time) -> Matrix3
| def GetParent | ( | self | ) |
GetParent(INode self) -> INode
| def GetParentTM | ( | self, | |
| args | |||
| ) |
GetParentTM(INode self, TimeValue t=Autodesk::Max::Now()) -> Matrix3 GetParentTM(INode self) -> Matrix3
| def GetPivotMode | ( | ) |
GetPivotMode() -> int
| def GetPositionTaskWeight | ( | self | ) |
GetPositionTaskWeight(INode self) -> float
| def GetPositionX | ( | self, | |
| args | |||
| ) |
GetPositionX(INode self, TimeValue t=Autodesk::Max::Now()) -> float GetPositionX(INode self) -> float
| def GetPositionY | ( | self, | |
| args | |||
| ) |
GetPositionY(INode self, TimeValue t=Autodesk::Max::Now()) -> float GetPositionY(INode self) -> float
| def GetPositionZ | ( | self, | |
| args | |||
| ) |
GetPositionZ(INode self, TimeValue t=Autodesk::Max::Now()) -> float GetPositionZ(INode self) -> float
| def GetPrimaryVisibility | ( | self | ) |
GetPrimaryVisibility(INode self) -> bool
| def GetReceiveCaustics | ( | self | ) |
GetReceiveCaustics(INode self) -> bool
| def GetReceiveGlobalIllum | ( | self | ) |
GetReceiveGlobalIllum(INode self) -> bool
| def GetReceiveShadows | ( | self | ) |
GetReceiveShadows(INode self) -> bool
| def GetRenderable | ( | self | ) |
GetRenderable(INode self) -> bool
| def GetRenderByLayer | ( | self | ) |
GetRenderByLayer(INode self) -> bool
| def GetRenderOccluded | ( | self | ) |
GetRenderOccluded(INode self) -> bool
| def GetRotationTaskWeight | ( | self | ) |
GetRotationTaskWeight(INode self) -> float
| def GetSecondaryVisibility | ( | self | ) |
GetSecondaryVisibility(INode self) -> bool
| def GetSeeThrough | ( | self | ) |
GetSeeThrough(INode self) -> bool
| def GetSeeThroughObject | ( | self | ) |
GetSeeThroughObject(INode self) -> bool
| def GetSelected | ( | self | ) |
GetSelected(INode self) -> bool
| def GetShadeVertexColors | ( | self | ) |
GetShadeVertexColors(INode self) -> bool
| def GetShowFrozenWithMtl | ( | self | ) |
GetShowFrozenWithMtl(INode self) -> bool
| def GetStretchTM | ( | self, | |
| args | |||
| ) |
GetStretchTM(INode self, TimeValue t) -> Matrix3
| def GetTarget | ( | self | ) |
GetTarget(INode self) -> INode
| def GetTargetNodePair | ( | self | ) |
GetTargetNodePair(INode self) -> bool
| def GetTargetTM | ( | self, | |
| args | |||
| ) |
GetTargetTM(INode self, TimeValue t, Matrix3 m) -> bool
| def GetTaskAxisState | ( | self, | |
| args | |||
| ) |
GetTaskAxisState(INode self, int which, int axis) -> bool
| def GetTaskAxisStateBits | ( | self | ) |
GetTaskAxisStateBits(INode self) -> DWORD
| def GetTMController | ( | self | ) |
GetTMController(INode self) -> Control
| def GetTrajectoryON | ( | self | ) |
GetTrajectoryON(INode self) -> bool
| def GetTransformLock | ( | self, | |
| args | |||
| ) |
GetTransformLock(INode self, int type, int axis) -> bool
| def GetUserPropBuffer | ( | self, | |
| args | |||
| ) |
GetUserPropBuffer(INode self, WStr buf)
| def GetVertexColorMapChannel | ( | self | ) |
GetVertexColorMapChannel(INode self) -> int
| def GetVertexColorMode | ( | self | ) |
GetVertexColorMode(INode self) -> bool
| def GetVertexColorType | ( | self | ) |
GetVertexColorType(INode self) -> int
| def GetVertexCount | ( | self, | |
| args | |||
| ) |
GetVertexCount(INode self, TimeValue t=Autodesk::Max::Now()) -> int GetVertexCount(INode self) -> int
| def GetVertTicks | ( | self | ) |
GetVertTicks(INode self) -> bool
| def GetVisibility | ( | self, | |
| args | |||
| ) |
GetVisibility(INode self, TimeValue t=Autodesk::Max::Now()) -> float GetVisibility(INode self) -> float
| def GetVisibilityController | ( | self | ) |
GetVisibilityController(INode self) -> Control
| def GetWireColor | ( | self | ) |
GetWireColor(INode self) -> Color
| def GetWorldPosition | ( | self, | |
| args | |||
| ) |
GetWorldPosition(INode self, TimeValue t=Autodesk::Max::Now()) -> Point3 GetWorldPosition(INode self) -> Point3
| def GetWorldRotation | ( | self, | |
| args | |||
| ) |
GetWorldRotation(INode self, TimeValue t=Autodesk::Max::Now()) -> Quat GetWorldRotation(INode self) -> Quat
| def GetWorldScale | ( | self, | |
| args | |||
| ) |
GetWorldScale(INode self, TimeValue t=Autodesk::Max::Now()) -> Point3 GetWorldScale(INode self) -> Point3
| def GetWorldTM | ( | self, | |
| args | |||
| ) |
GetWorldTM(INode self, TimeValue t=Autodesk::Max::Now()) -> Matrix3 GetWorldTM(INode self) -> Matrix3
| def GetXRefFile | ( | self, | |
| args | |||
| ) |
GetXRefFile(INode self, int i) -> Asset
| def GetXRefFileCount | ( | self | ) |
GetXRefFileCount(INode self) -> int
| def GetXRefFlags | ( | self, | |
| args | |||
| ) |
GetXRefFlags(INode self, int i) -> DWORD
| def GetXRefParent | ( | self, | |
| args | |||
| ) |
GetXRefParent(INode self, int i) -> INode
| def GetXRefTree | ( | self, | |
| args | |||
| ) |
GetXRefTree(INode self, int i) -> INode
| def GroupNodes | ( | args | ) |
GroupNodes(INodeTab nodes, WStr name, bool selGroup) -> INode GroupNodes(INodeTab nodes, WStr name) -> INode GroupNodes(INodeTab nodes) -> INode
| def Hide | ( | self, | |
| args | |||
| ) |
Hide(INode self, bool onOff)
| def InsertModifier | ( | self, | |
| args | |||
| ) |
InsertModifier(INode self, Modifier m, int n) -> Autodesk::Max::ResCode::Type
| def InvalidateObjectCache | ( | self | ) |
InvalidateObjectCache(INode self)
| def InvalidateRect | ( | self, | |
| args | |||
| ) |
InvalidateRect(INode self, TimeValue t, bool oldRect=False) InvalidateRect(INode self, TimeValue t)
| def InvalidateTM | ( | self | ) |
InvalidateTM(INode self)
| def InvalidateTreeTM | ( | self | ) |
InvalidateTreeTM(INode self)
| def InvalidateWS | ( | self | ) |
InvalidateWS(INode self)
| def IsActiveGrid | ( | self | ) |
IsActiveGrid(INode self) -> bool
| def IsAssemblyHead | ( | self | ) |
IsAssemblyHead(INode self) -> bool
| def IsAssemblyHeadMemberOf | ( | self, | |
| args | |||
| ) |
IsAssemblyHeadMemberOf(INode self, INode asmHeadNode) -> bool
| def IsAssemblyHeadOpen | ( | self | ) |
IsAssemblyHeadOpen(INode self) -> bool
| def IsAssemblyMember | ( | self | ) |
IsAssemblyMember(INode self) -> bool
| def IsAssemblyMemberOpen | ( | self | ) |
IsAssemblyMemberOpen(INode self) -> bool
| def IsBoneOnly | ( | self | ) |
IsBoneOnly(INode self) -> bool
| def IsBoneShowing | ( | self | ) |
IsBoneShowing(INode self) -> bool
| def IsDependent | ( | self | ) |
IsDependent(INode self) -> bool
| def IsFrozen | ( | self | ) |
IsFrozen(INode self) -> bool
| def IsGroupHead | ( | self | ) |
IsGroupHead(INode self) -> bool
| def IsGroupMember | ( | self | ) |
IsGroupMember(INode self) -> bool
| def IsHidden | ( | self, | |
hflags = 0, |
|||
forRenderer = False |
|||
| ) |
IsHidden(INode self, DWORD hflags=0, bool forRenderer=False) -> bool IsHidden(INode self, DWORD hflags=0) -> bool IsHidden(INode self) -> bool
| def IsNodeHidden | ( | self, | |
forRenderer = False |
|||
| ) |
IsNodeHidden(INode self, bool forRenderer=False) -> bool IsNodeHidden(INode self) -> bool
| def IsObjectFrozen | ( | self | ) |
IsObjectFrozen(INode self) -> bool
| def IsObjectHidden | ( | self | ) |
IsObjectHidden(INode self) -> bool
| def IsOpenGroupHead | ( | self | ) |
IsOpenGroupHead(INode self) -> bool
| def IsOpenGroupMember | ( | self | ) |
IsOpenGroupMember(INode self) -> bool
| def IsSceneXRef | ( | self | ) |
IsSceneXRef(INode self) -> bool
| def IsTarget | ( | self | ) |
IsTarget(INode self) -> bool
| def MayResetTransform | ( | self | ) |
MayResetTransform(INode self) -> bool
| def Move | ( | self, | |
| args | |||
| ) |
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot,
bool ignoreLocks=False)
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot)
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True)
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False)
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity())
Move(INode self, Point3 val, TimeValue t=Autodesk::Max::Now())
Move(INode self, Point3 val)
| def NodeColorPicker | ( | args | ) |
NodeColorPicker(HWND hWnd, DWORD & col) -> bool
| def OpenGroup | ( | args | ) |
OpenGroup(INodeTab nodes, bool clearSel=True) OpenGroup(INodeTab nodes) OpenGroup(bool clearSel=True) OpenGroup()
| def RealignBoneToChild | ( | self, | |
| args | |||
| ) |
RealignBoneToChild(INode self, TimeValue t)
| def ReloadXRef | ( | self, | |
| args | |||
| ) |
ReloadXRef(INode self, int i) -> bool
| def ResetBoneStretch | ( | self, | |
| args | |||
| ) |
ResetBoneStretch(INode self, TimeValue t)
| def ResetPivot | ( | self, | |
| args | |||
| ) |
ResetPivot(INode self, TimeValue t)
| def ResetTransform | ( | self, | |
| args | |||
| ) |
ResetTransform(INode self, TimeValue t, bool scaleOnly)
| def Rotate | ( | self, | |
| args | |||
| ) |
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot,
bool ignoreLocks=False)
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot)
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True)
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False)
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity())
Rotate(INode self, Quat val, TimeValue t=Autodesk::Max::Now())
Rotate(INode self, Quat val)
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot,
bool ignoreLocks=False)
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot)
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True)
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False)
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity())
Rotate(INode self, AngAxis val, TimeValue t=Autodesk::Max::Now())
Rotate(INode self, AngAxis val)
| def Scale | ( | self, | |
| args | |||
| ) |
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot,
bool ignoreLocks=False)
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True, Autodesk::Max::PivotMode::Type pivMode=NoPivot)
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False, bool affectKids=True)
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity(),
bool localOrigin=False)
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now(), Matrix3 tmAxis=Autodesk::Max::Identity())
Scale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now())
Scale(INode self, Point3 val)
| def Select | ( | self, | |
replaceSelection = False |
|||
| ) |
Select(INode self, bool replaceSelection=False) Select(INode self)
| def SetAffectChildren | ( | args | ) |
SetAffectChildren(bool bAffectChildren)
| def SetAllEdges | ( | self, | |
| args | |||
| ) |
SetAllEdges(INode self, bool onOff)
| def SetApplyAtmospherics | ( | self, | |
| args | |||
| ) |
SetApplyAtmospherics(INode self, bool onOff)
| def SetAssemblyBBoxDisplay | ( | self, | |
| args | |||
| ) |
SetAssemblyBBoxDisplay(INode self, bool b)
| def SetAssemblyHead | ( | self, | |
| args | |||
| ) |
SetAssemblyHead(INode self, bool b)
| def SetAssemblyHeadOpen | ( | self, | |
| args | |||
| ) |
SetAssemblyHeadOpen(INode self, bool b)
| def SetAssemblyMember | ( | self, | |
| args | |||
| ) |
SetAssemblyMember(INode self, bool b)
| def SetAssemblyMemberOpen | ( | self, | |
| args | |||
| ) |
SetAssemblyMemberOpen(INode self, bool b)
| def SetBackCull | ( | self, | |
| args | |||
| ) |
SetBackCull(INode self, bool onOff)
| def SetBaseObject | ( | self, | |
| args | |||
| ) |
SetBaseObject(INode self, Object obj)
| def SetBoneAutoAlign | ( | self, | |
| args | |||
| ) |
SetBoneAutoAlign(INode self, bool onOff)
| def SetBoneAxis | ( | self, | |
| args | |||
| ) |
SetBoneAxis(INode self, int which)
| def SetBoneAxisFlip | ( | self, | |
| args | |||
| ) |
SetBoneAxisFlip(INode self, bool onOff)
| def SetBoneFreezeLen | ( | self, | |
| args | |||
| ) |
SetBoneFreezeLen(INode self, bool onOff)
| def SetBoneNodeOnOff | ( | self, | |
| args | |||
| ) |
SetBoneNodeOnOff(INode self, bool onOff, TimeValue t)
| def SetBoneScaleType | ( | self, | |
| args | |||
| ) |
SetBoneScaleType(INode self, int which)
| def SetBoxMode | ( | self, | |
| args | |||
| ) |
SetBoxMode(INode self, bool onOff)
| def SetCastShadows | ( | self, | |
| args | |||
| ) |
SetCastShadows(INode self, bool onOff)
| def SetDisplayByLayer | ( | self, | |
| args | |||
| ) |
SetDisplayByLayer(INode self, bool onOff)
| def SetGBufID | ( | self, | |
| args | |||
| ) |
SetGBufID(INode self, ULONG id)
| def SetGenerateCaustics | ( | self, | |
| args | |||
| ) |
SetGenerateCaustics(INode self, bool onOff)
| def SetGenerateGlobalIllum | ( | self, | |
| args | |||
| ) |
SetGenerateGlobalIllum(INode self, bool onOff)
| def SetGroupHead | ( | self, | |
| args | |||
| ) |
SetGroupHead(INode self, bool b)
| def SetGroupHeadOpen | ( | self, | |
| args | |||
| ) |
SetGroupHeadOpen(INode self, bool b)
| def SetGroupMember | ( | self, | |
| args | |||
| ) |
SetGroupMember(INode self, bool b)
| def SetGroupMemberOpen | ( | self, | |
| args | |||
| ) |
SetGroupMemberOpen(INode self, bool b)
| def SetIgnoreExtents | ( | self, | |
| args | |||
| ) |
SetIgnoreExtents(INode self, bool onOff)
| def SetImageBlurMultiplier | ( | self, | |
| args | |||
| ) |
SetImageBlurMultiplier(INode self, float m, TimeValue t=Autodesk::Max::Now()) SetImageBlurMultiplier(INode self, float m)
| def SetInheritVisibility | ( | self, | |
| args | |||
| ) |
SetInheritVisibility(INode self, bool onOff)
| def SetIsTarget | ( | self, | |
| args | |||
| ) |
SetIsTarget(INode self, bool b)
| def SetLocalPosition | ( | self, | |
| args | |||
| ) |
SetLocalPosition(INode self, Point3 val, TimeValue t=Autodesk::Max::Now()) SetLocalPosition(INode self, Point3 val)
| def SetLocalRotation | ( | self, | |
| args | |||
| ) |
SetLocalRotation(INode self, Quat val, TimeValue t=Autodesk::Max::Now()) SetLocalRotation(INode self, Quat val)
| def SetLocalScale | ( | self, | |
| args | |||
| ) |
SetLocalScale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now()) SetLocalScale(INode self, Point3 val)
| def SetLocalTM | ( | self, | |
| args | |||
| ) |
SetLocalTM(INode self, Matrix3 val, TimeValue t=Autodesk::Max::Now()) SetLocalTM(INode self, Matrix3 val)
| def SetMaterial | ( | self, | |
| args | |||
| ) |
SetMaterial(INode self, Mtl matl)
| def SetMotionBlurOnOff | ( | self, | |
| args | |||
| ) |
SetMotionBlurOnOff(INode self, bool onOff)
| def SetMotionBlurType | ( | self, | |
| args | |||
| ) |
SetMotionBlurType(INode self, int kind)
| def SetMotionByLayer | ( | self, | |
| args | |||
| ) |
SetMotionByLayer(INode self, bool onOff)
| def SetName | ( | self, | |
| args | |||
| ) |
SetName(INode self, wchar_t const * s)
| def SetNeverDegrade | ( | self, | |
| args | |||
| ) |
SetNeverDegrade(INode self, bool onOff)
| def SetNodeAttribute | ( | args | ) |
SetNodeAttribute(INodeTab nodes, int whatAttrib, int onOff) SetNodeAttribute(INode node, int whatAttrib, int onOff)
| def SetNodeTMRelConstPlane | ( | self, | |
| args | |||
| ) |
SetNodeTMRelConstPlane(INode self, Matrix3 mat)
| def SetObject | ( | self, | |
| args | |||
| ) |
SetObject(INode self, Object obj)
| def SetObjectRef | ( | self, | |
| args | |||
| ) |
SetObjectRef(INode self, Object o)
| def SetObjOffsetPosition | ( | self, | |
| args | |||
| ) |
SetObjOffsetPosition(INode self, Point3 p)
| def SetObjOffsetRotation | ( | self, | |
| args | |||
| ) |
SetObjOffsetRotation(INode self, Quat q)
| def SetObjOffsetScale | ( | self, | |
| args | |||
| ) |
SetObjOffsetScale(INode self, ScaleValue sv)
| def SetParent | ( | self, | |
| args | |||
| ) |
SetParent(INode self, INode node, TimeValue t=Autodesk::Max::Now()) SetParent(INode self, INode node)
| def SetPivotMode | ( | args | ) |
SetPivotMode(int pivMode)
| def SetPositionTaskWeight | ( | self, | |
| args | |||
| ) |
SetPositionTaskWeight(INode self, float w)
| def SetPositionX | ( | self, | |
| args | |||
| ) |
SetPositionX(INode self, float x, TimeValue t=Autodesk::Max::Now()) SetPositionX(INode self, float x)
| def SetPositionY | ( | self, | |
| args | |||
| ) |
SetPositionY(INode self, float y, TimeValue t=Autodesk::Max::Now()) SetPositionY(INode self, float y)
| def SetPositionZ | ( | self, | |
| args | |||
| ) |
SetPositionZ(INode self, float z, TimeValue t=Autodesk::Max::Now()) SetPositionZ(INode self, float z)
| def SetPrimaryVisibility | ( | self, | |
| args | |||
| ) |
SetPrimaryVisibility(INode self, bool onOff)
| def SetReceiveCaustics | ( | self, | |
| args | |||
| ) |
SetReceiveCaustics(INode self, bool onOff)
| def SetReceiveGlobalIllum | ( | self, | |
| args | |||
| ) |
SetReceiveGlobalIllum(INode self, bool onOff)
| def SetReceiveShadows | ( | self, | |
| args | |||
| ) |
SetReceiveShadows(INode self, bool onOff)
| def SetRenderable | ( | self, | |
| args | |||
| ) |
SetRenderable(INode self, bool onOff)
| def SetRenderByLayer | ( | self, | |
| args | |||
| ) |
SetRenderByLayer(INode self, bool onOff)
| def SetRenderOccluded | ( | self, | |
| args | |||
| ) |
SetRenderOccluded(INode self, bool onOff)
| def SetRotationTaskWeight | ( | self, | |
| args | |||
| ) |
SetRotationTaskWeight(INode self, float w)
| def SetSecondaryVisibility | ( | self, | |
| args | |||
| ) |
SetSecondaryVisibility(INode self, bool onOff)
| def SetSeeThrough | ( | self, | |
| args | |||
| ) |
SetSeeThrough(INode self, bool onOff)
| def SetShadeVertexColors | ( | self, | |
| args | |||
| ) |
SetShadeVertexColors(INode self, bool onOff)
| def SetShowFrozenWithMtl | ( | self, | |
| args | |||
| ) |
SetShowFrozenWithMtl(INode self, bool onOff)
| def SetTargetNodePair | ( | self, | |
| args | |||
| ) |
SetTargetNodePair(INode self, bool onOff)
| def SetTaskAxisState | ( | self, | |
| args | |||
| ) |
SetTaskAxisState(INode self, int which, int axis, bool onOff)
| def SetTMController | ( | self, | |
| args | |||
| ) |
SetTMController(INode self, Control m3cont) -> bool
| def SetTrajectoryON | ( | self, | |
| args | |||
| ) |
SetTrajectoryON(INode self, bool onOff)
| def SetTransformLock | ( | self, | |
| args | |||
| ) |
SetTransformLock(INode self, int type, int axis, bool onOff)
| def SetUserPropBuffer | ( | self, | |
| args | |||
| ) |
SetUserPropBuffer(INode self, WStr buf)
| def SetVertexColorMapChannel | ( | self, | |
| args | |||
| ) |
SetVertexColorMapChannel(INode self, int vcmc)
| def SetVertexColorMode | ( | self, | |
| args | |||
| ) |
SetVertexColorMode(INode self, bool onOff)
| def SetVertexColorType | ( | self, | |
| args | |||
| ) |
SetVertexColorType(INode self, int nvct)
| def SetVertTicks | ( | self, | |
| args | |||
| ) |
SetVertTicks(INode self, bool onOff)
| def SetVisibility | ( | self, | |
| args | |||
| ) |
SetVisibility(INode self, float vis, TimeValue t=Autodesk::Max::Now()) SetVisibility(INode self, float vis)
| def SetVisibilityController | ( | self, | |
| args | |||
| ) |
SetVisibilityController(INode self, Control cont)
| def SetWireColor | ( | self, | |
| args | |||
| ) |
SetWireColor(INode self, Color newcolor)
| def SetWorldPosition | ( | self, | |
| args | |||
| ) |
SetWorldPosition(INode self, Point3 val, TimeValue t=Autodesk::Max::Now()) SetWorldPosition(INode self, Point3 val)
| def SetWorldRotation | ( | self, | |
| args | |||
| ) |
SetWorldRotation(INode self, Quat val, TimeValue t=Autodesk::Max::Now()) SetWorldRotation(INode self, Quat val)
| def SetWorldScale | ( | self, | |
| args | |||
| ) |
SetWorldScale(INode self, Point3 val, TimeValue t=Autodesk::Max::Now()) SetWorldScale(INode self, Point3 val)
| def SetWorldTM | ( | self, | |
| args | |||
| ) |
SetWorldTM(INode self, Matrix3 val, TimeValue t=Autodesk::Max::Now()) SetWorldTM(INode self, Matrix3 val)
| def SetXRefFile | ( | self, | |
| args | |||
| ) |
SetXRefFile(INode self, int i, Asset file, bool reload)
| def SetXRefFlags | ( | self, | |
| args | |||
| ) |
SetXRefFlags(INode self, int i, DWORD flag, bool onOff)
| def SetXRefParent | ( | self, | |
| args | |||
| ) |
SetXRefParent(INode self, int i, INode par, bool autoOffset=True) SetXRefParent(INode self, int i, INode par)
| def ShowBone | ( | self, | |
| args | |||
| ) |
ShowBone(INode self, bool boneVis)
| def UnfreezeObjectAndLayer | ( | self, | |
dolayer = True |
|||
| ) |
UnfreezeObjectAndLayer(INode self, bool dolayer=True) UnfreezeObjectAndLayer(INode self)
| def UngroupNodes | ( | args | ) |
UngroupNodes(INodeTab nodes) UngroupNodes()
| def UnhideObjectAndLayer | ( | self, | |
dolayer = True |
|||
| ) |
UnhideObjectAndLayer(INode self, bool dolayer=True) UnhideObjectAndLayer(INode self)
| def UpdateChangedXRefs | ( | self, | |
redraw = True |
|||
| ) |
UpdateChangedXRefs(INode self, bool redraw=True) -> bool UpdateChangedXRefs(INode self) -> bool
| def WorldAlignPivot | ( | self, | |
| args | |||
| ) |
WorldAlignPivot(INode self, TimeValue t, bool moveObject)
