Mtl Class Reference

This reference page is linked to from the following overview topics:

---

Class Description

Material base class.

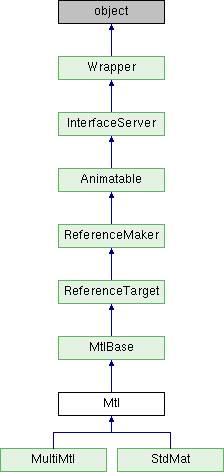

Inheritance diagram for Mtl:

Public Member Functions
def	CombineMaterials
def	CopySubMtl
def	GetActiveTexmap
def	GetAmbient
def	GetDiffuse
def	GetNumSubMtls
def	GetSelfIllum
def	GetSelfIllumColor
def	GetSelfIllumColorOn
def	GetShininess
def	GetShinyStrength
def	GetSpecular
def	GetSubMtl
def	GetSubMtlSlotName
def	GetSubMtlTVName
def	GetXParency
def	SetActiveTexmap
def	SetAmbient
def	SetDiffuse
def	SetShininess
def	SetSpecular
def	SetSubMtl
def	SupportsRenderElements
def	SupportsShaders
def	VPDisplaySubMtl
def	WireSize
Public Member Functions inherited from MtlBase
def	ActivateTexDisplay
def	AnyMulti
def	ClearMtlFlag
def	DeactivateMapsInTree
def	GetActiveMB
def	GetFullName
def	GetGBufID
def	GetMeditObjType
def	GetMEditRotate
def	GetMeditTiling
def	GetName
def	GetRefTarget
def	GetTransparencyHint
def	IsMultiMtl
def	LocalMappingsRequired
def	LocalRequirements
def	MappingsRequired
def	MapSlotType
def	Requirements
def	Reset
def	SetActiveMB
def	SetGBufID
def	SetMeditObjType
def	SetMeditTiling
def	SetMtlFlag
def	SetName
def	SupportsMultiMapsInViewport
def	SupportTexDisplay
def	TestMtlFlag
def	TextureDisplayEnabled
def	Update
def	Validity
Public Member Functions inherited from ReferenceTarget
def	NotifyTarget
Public Member Functions inherited from ReferenceMaker
def	ClearFlagInHierarchy
def	DeleteMe
def	DeleteReference
def	FindRef
def	GetNumRefs
def	GetReference
def	NotifyChanged
def	NotifyDependents
def	ReplaceReference
def	RescaleWorldUnits
Public Member Functions inherited from Animatable
def	AddNewKey
def	AssignController
def	CanAssignController
def	CanCopyAnim
def	CanCopyTrack
def	CanDeleteSubAnim
def	CanMakeUnique
def	ClearAFlag
def	ClearAFlagEx
def	ClearFlagBit
def	ClearFlagInAllAnimatables
def	CopyKeysFromTime
def	DeleteKeyAtTime
def	DeleteKeyByIndex
def	DeleteKeys
def	DeleteSubAnim
def	DeleteTime
def	DoesSupportTimeOperations
def	EditTimeRange
def	FreeCaches
def	GetAnimByHandle
def	GetAnimHandle
def	GetClassID
def	GetClassName
def	GetCustomAttributeContainer
def	GetHasSubElements
def	GetKeyIndex
def	GetKeyTime
def	GetNextKeyTime
def	GetNodeName
def	GetNumKeys
def	GetNumSubAnims
def	GetParameterBlock
def	GetSubAnim
def	GetSubAnimName
def	GetSuperClassID
def	GetTimeRange
def	InsertTime
def	IsAnimated
def	IsKeyAtTime
def	IsSubClassOf
def	MoveKeys
def	ReverseTime
def	ScaleKeyValues
def	ScaleTime
def	SetAFlag
def	SetAFlagEx
def	SetFlagBit
def	SubNumToRefNum
def	TestAFlag
def	TestAFlagEx
def	TestFlagBit
Public Member Functions inherited from InterfaceServer
def	GetInterface
Public Member Functions inherited from Wrapper
def	GetUnwrappedPtr

Static Public Attributes
tuple	Ambient = _swig_property(GetAmbient, SetAmbient)
tuple	CombineMaterials = staticmethod(CombineMaterials)
tuple	Diffuse = _swig_property(GetDiffuse, SetDiffuse)
tuple	SelfIllumColor = _swig_property(GetSelfIllumColor, SetSpecular)
tuple	Shininess = _swig_property(GetShininess, SetShininess)
tuple	ShinyStrength = _swig_property(GetShinyStrength)
tuple	Specular = _swig_property(GetSpecular, SetSpecular)
tuple	SubMtls = _swig_property(lambda self: (self.GetSubMtl(i) for i in xrange(self.GetNumSubMtls())))
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from MtlBase
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceTarget
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from ReferenceMaker
tuple	NumRefs = _swig_property(GetNumRefs)
tuple	Refs = _swig_property(lambda self: (self.GetReference(i) for i in xrange(self.GetNumRefs())))
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Animatable
tuple	AnimHandle = _swig_property(GetAnimHandle)
tuple	ClassID = _swig_property(GetClassID)
tuple	ClearFlagInAllAnimatables = staticmethod(ClearFlagInAllAnimatables)
tuple	GetAnimByHandle = staticmethod(GetAnimByHandle)
tuple	KeyTimes = _swig_property(lambda self: (self.GetKeyTime(i) for i in xrange(self.GetNumKeys())))
tuple	NodeName = _swig_property(GetNodeName)
tuple	NumSubAnims = _swig_property(GetNumSubAnims)
tuple	ParameterBlock = _swig_property(GetParameterBlock)
tuple	SubAnimNames = _swig_property(lambda self: (self.GetSubAnimName(i) for i in xrange(self.GetNumSubAnims())))
tuple	SubAnims = _swig_property(lambda self: (self.GetSubAnim(i) for i in xrange(self.GetNumSubAnims())))
tuple	SuperClassID = _swig_property(GetSuperClassID)
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from InterfaceServer
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')
Static Public Attributes inherited from Wrapper
tuple	thisown = _swig_property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc='The membership flag')

Member Function Documentation

def CombineMaterials

(

args

)

CombineMaterials(Mtl mat1, Mtl mat2, int & mat2Offset) -> Mtl

def CopySubMtl	(		self,
			args
	)

CopySubMtl(Mtl self, HWND hwnd, int ifrom, int ito)

def GetActiveTexmap

(

self

)

GetActiveTexmap(Mtl self) -> MtlBase

def GetAmbient	(		self,
			mtlNum = 0,
			backFace = True
	)

GetAmbient(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetAmbient(Mtl self, int mtlNum=0) -> Color
GetAmbient(Mtl self) -> Color

def GetDiffuse	(		self,
			mtlNum = 0,
			backFace = True
	)

GetDiffuse(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetDiffuse(Mtl self, int mtlNum=0) -> Color
GetDiffuse(Mtl self) -> Color

def GetNumSubMtls

(

self

)

GetNumSubMtls(Mtl self) -> int

def GetSelfIllum	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllum(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetSelfIllum(Mtl self, int mtlNum=0) -> float
GetSelfIllum(Mtl self) -> float

def GetSelfIllumColor	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllumColor(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetSelfIllumColor(Mtl self, int mtlNum=0) -> Color
GetSelfIllumColor(Mtl self) -> Color

def GetSelfIllumColorOn	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSelfIllumColorOn(Mtl self, int mtlNum=0, bool backFace=True) -> bool
GetSelfIllumColorOn(Mtl self, int mtlNum=0) -> bool
GetSelfIllumColorOn(Mtl self) -> bool

def GetShininess	(		self,
			mtlNum = 0,
			backFace = True
	)

GetShininess(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetShininess(Mtl self, int mtlNum=0) -> float
GetShininess(Mtl self) -> float

def GetShinyStrength	(		self,
			mtlNum = 0,
			backFace = True
	)

GetShinyStrength(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetShinyStrength(Mtl self, int mtlNum=0) -> float
GetShinyStrength(Mtl self) -> float

def GetSpecular	(		self,
			mtlNum = 0,
			backFace = True
	)

GetSpecular(Mtl self, int mtlNum=0, bool backFace=True) -> Color
GetSpecular(Mtl self, int mtlNum=0) -> Color
GetSpecular(Mtl self) -> Color

def GetSubMtl	(		self,
			args
	)

GetSubMtl(Mtl self, int i) -> Mtl

def GetSubMtlSlotName	(		self,
			args
	)

GetSubMtlSlotName(Mtl self, int i) -> WStr

def GetSubMtlTVName	(		self,
			args
	)

GetSubMtlTVName(Mtl self, int i) -> WStr

def GetXParency	(		self,
			mtlNum = 0,
			backFace = True
	)

GetXParency(Mtl self, int mtlNum=0, bool backFace=True) -> float
GetXParency(Mtl self, int mtlNum=0) -> float
GetXParency(Mtl self) -> float

def SetActiveTexmap	(		self,
			args
	)

SetActiveTexmap(Mtl self, MtlBase txm)

def SetAmbient	(		self,
			args
	)

SetAmbient(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetAmbient(Mtl self, Color c)

def SetDiffuse	(		self,
			args
	)

SetDiffuse(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetDiffuse(Mtl self, Color c)

def SetShininess	(		self,
			args
	)

SetShininess(Mtl self, float v, TimeValue t=Autodesk::Max::Now())
SetShininess(Mtl self, float v)

def SetSpecular	(		self,
			args
	)

SetSpecular(Mtl self, Color c, TimeValue t=Autodesk::Max::Now())
SetSpecular(Mtl self, Color c)

def SetSubMtl	(		self,
			args
	)

SetSubMtl(Mtl self, int i, Mtl m)

def SupportsRenderElements

(

self

)

SupportsRenderElements(Mtl self) -> bool

def SupportsShaders

(

self

)

SupportsShaders(Mtl self) -> bool

def VPDisplaySubMtl

(

self

)

VPDisplaySubMtl(Mtl self) -> int

def WireSize	(		self,
			mtlNum = 0,
			backFace = True
	)

WireSize(Mtl self, int mtlNum=0, bool backFace=True) -> float
WireSize(Mtl self, int mtlNum=0) -> float
WireSize(Mtl self) -> float
