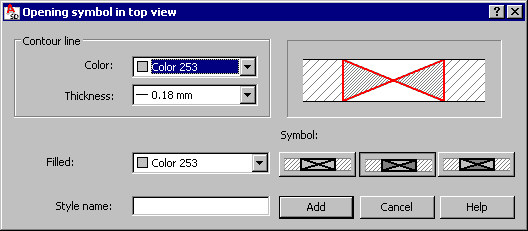

Use this dialog to define or modify a style for an opening in a top view.
To display the Opening symbol in top view dialog:
- On the Styles of symbols dialog, for Symbol, select Opening symbol in section
- Click New or Modify.
The dialog below also opens after selecting symbolic presentation of an opening/recess in the wall (Formwork Drawings > Styles > Styles - element graphic display) and clicking Details on the Graphic representation of element dialog.
There are 3 types of opening symbols:
Define parameters for each of the symbol types:
- Color and thickness of a contour line
- Fill of an opening symbol.
For Style name, enter a name for the opening symbol style, and click Add.
