The Quick Documents palettes are used for creating documents from the Advance Steel model.
The Quick Documents palettes provide quick access to a selected set of drawing styles, drawing processes and list templates. The set of available drawing styles, drawing processes and templates can be customized.
There are three Quick Documents palettes:
- Drawing Styles palette
- Drawing Processes palette
- BOM Templates palette
The palettes allow you to quickly browse and use drawing styles and drawing processes for drawing creations as well as list templates for BOM list creations. The categories are represented by intuitive images.
The Quick Documents Palettes can be opened using the buttons located either:

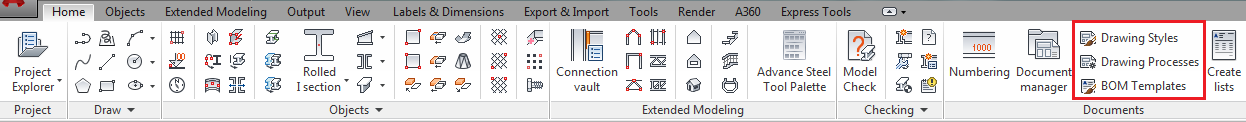

- On the Home tab > Documents panel.

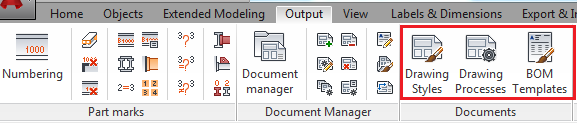

- On the Output tab > Documents panel.
| Palette | Quick Documents Palette name |
|---|---|
|

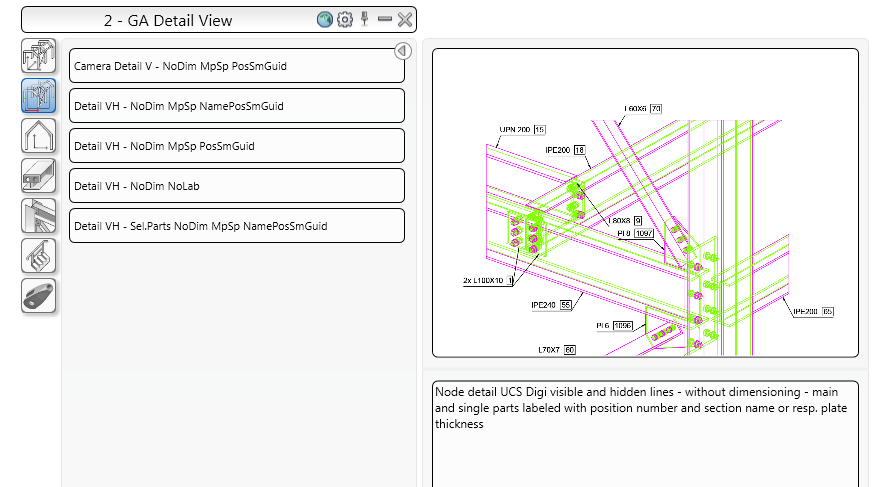

Drawing Styles palette |
|

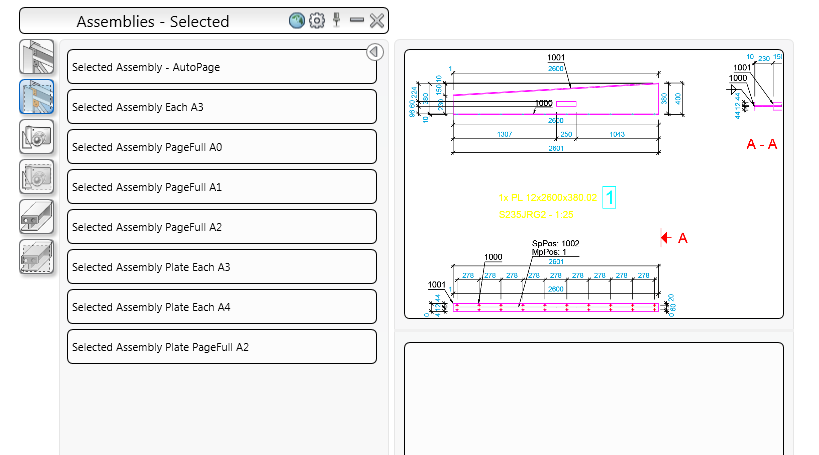

Drawing Processes palette |
|

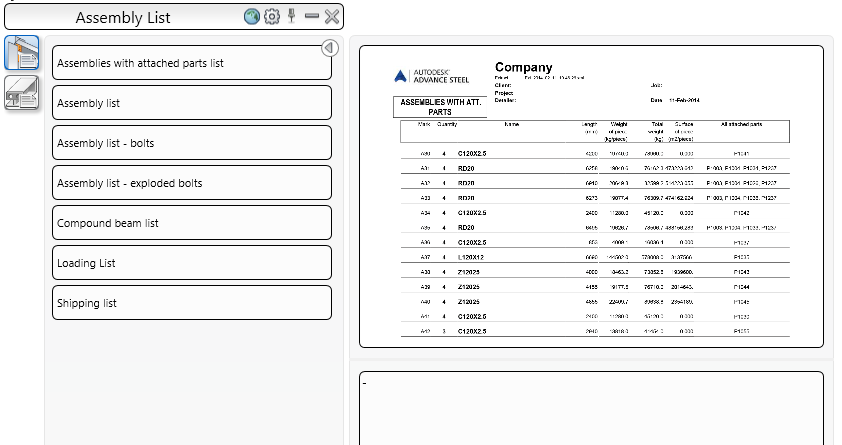

BOM Templates palette |
