Class Description

It represents a binding relationship between current object and the target.

Any binding operation need to specify a certain kind of binding function.

Definition at line 183 of file fbxbindingoperator.h.

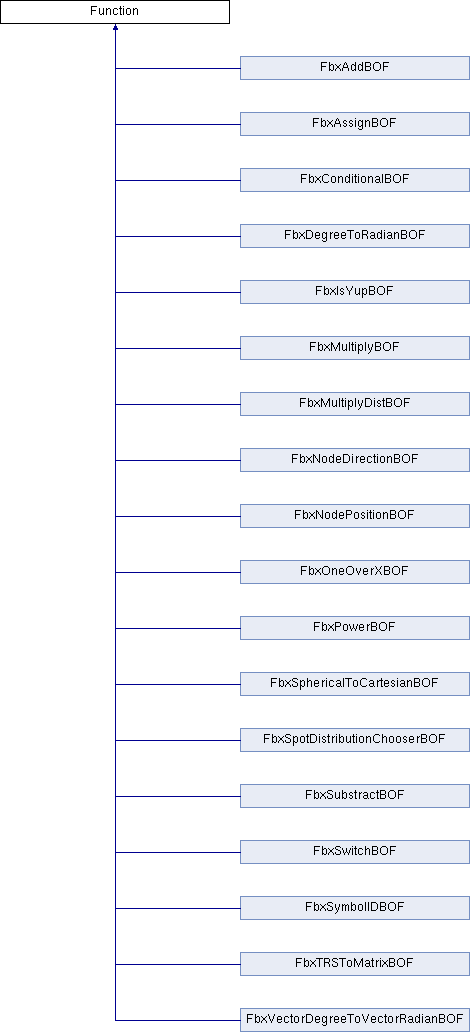

Inheritance diagram for FbxBindingOperator::Function:

Public Member Functions
virtual	~Function ()
	Destructor. More...

virtual bool	Evaluate (const FbxBindingOperator pOperator, const FbxObject pObject, EFbxType pResultType, void *pResult) const =0
	Run the operator on the given object. More...

virtual bool	ReverseEvaluate (const FbxBindingOperator pOperator, const FbxObject pTarget, const void pIn, void pOut, EFbxType pOutType, bool setObj, int index) const =0
	Run the inverse operator on the given object, assigning the result directly to the object. More...

Constructor & Destructor Documentation

virtual ~Function ( )

inlinevirtual

Destructor.

Definition at line 187 of file fbxbindingoperator.h.

187 {}

pure virtual

Run the operator on the given object.

Parameters

pOperator	The operator that will be applied.
pObject	The object that will be evaluated.
pResultType	Will be filled by the type of the result.
pResult	Will be filled by a pointer to a buffer that hold the result. The caller must call FreeEvaluationResult() when it is done with this pointer.

virtual bool ReverseEvaluate	(	const FbxBindingOperator *	pOperator,
		const FbxObject *	pTarget,
		const void *	pIn,
		void **	pOut,
		EFbxType *	pOutType,
		bool	setObj,
		int	index
	)		const

pure virtual

Run the inverse operator on the given object, assigning the result directly to the object.

Parameters

pOperator	The operator that will be applied.
pTarget	The object that will be evaluated.
pIn
pOut
pOutType	Type of value being reversed.
setObj	Control to set the property (only to query by the default ).
index	Used only in FbxMultiplyDistBOF.

The documentation for this class was generated from the following file:
