adskColor.h File Reference

---

Detailed Description

Color manipulation functions.

#include <shader.h>
#include "adskConstants.h"
#include "adskShaderSDKNamespaceBegin.h"
#include "adskShaderSDKNamespaceEnd.h"

Include dependency graph for adskColor.h:

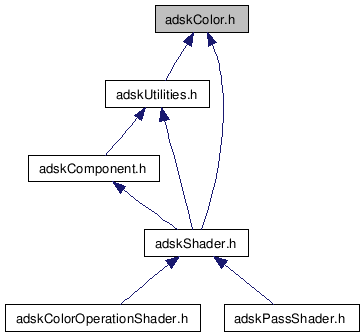

This graph shows which files directly or indirectly include this file:

Functions
bool	MAYA_ISBLACK (const miColor &c)
	Check whether a given color is black.
miScalar	MAYA_LUMINANCE (const miColor &c)
	Calculate the luminance of the given RGB color.
miScalar	MAYA_INTENSITY (const miColor &c)
	Calculate the intensity of the given RGB color.
miColor	operator* (const miColor &lhs, const miScalar &rhs)
	Multiplies a color by a scalar.
miColor	operator* (const miScalar &lhs, const miColor &rhs)
	Multiplies a color by a scalar.
miColor	operator* (const miColor &lhs, const miColor &rhs)
	Multiplies a color by a color.
miColor	operator/ (const miColor &lhs, const miScalar &rhs)
	Divide a color by a scalar.
miColor	operator/ (const miColor &lhs, const int &rhs)
	Divide a color by an integer.
miColor	operator+ (const miColor &lhs, const miColor &rhs)
	Add two colors together.
miColor	operator- (const miColor &lhs, const miColor &rhs)
	Subtract two colors.
miColor	opaqueColor (const miColor &color)
	Return a color which is fully opaque.

---

Function Documentation

miScalar MAYA_INTENSITY

(

const miColor &

c

)

[inline]

Calculate the intensity of the given RGB color.

The intensity is calculated as the average of the RGB components.

Parameters:

[in]

c

The given color.

Returns:

The intensity.

bool MAYA_ISBLACK

(

const miColor &

c

)

[inline]

Check whether a given color is black.

This function will check that the RGB components of the given color are less than a given epsilon (MAYA_EPS defined in adskConstants.h).

Parameters:

[in]

c

The color to check.

Returns:

Whether the color can be considered to be black.

miScalar MAYA_LUMINANCE

(

const miColor &

c

)

[inline]

Calculate the luminance of the given RGB color.

The luminance is a weighted sum of the response of the color channels which weighs green, red, and blue in decreasing amounts. This is to model human visual sensitivity.

Parameters:

[in]

c

The given color.

Returns:

The luminance.

miColor opaqueColor

(

const miColor &

color

)

[inline]

Return a color which is fully opaque.

This function converts a color to a fully opaque color, meaning that it sets the alpha channel to 1.

Parameters:

[in]

color

The color to be made opaque.

Returns:

The opaque color.

miColor operator*	(	const miColor &	lhs,
		const miColor &	rhs
	)			[inline]

Multiplies a color by a color.

This returns a new color whose channels are the products of the respective channels of the operands (including the alpha component).

Parameters:

[in]	lhs	The color to be multiplied.
[in]	rhs	The other color to be multiplied.

Returns:

The multiplied color.

miColor operator*	(	const miScalar &	lhs,
		const miColor &	rhs
	)			[inline]

Multiplies a color by a scalar.

The alpha channel is also multiplied by the scalar.

Parameters:

[in]	lhs	The scalar to multiply by.
[in]	rhs	The color to be multiplied.

Returns:

The multiplied color.

miColor operator*	(	const miColor &	lhs,
		const miScalar &	rhs
	)			[inline]

Multiplies a color by a scalar.

The alpha channel is also multiplied by the scalar.

Parameters:

[in]	lhs	The color to be multiplied.
[in]	rhs	The scalar to multiply by.

Returns:

The multiplied color.

miColor operator+	(	const miColor &	lhs,
		const miColor &	rhs
	)			[inline]

Add two colors together.

This returns a color representing the sum of the two operands. The alpha channel is also added.

Parameters:

[in]	lhs	One of the colors to be added.
[in]	rhs	The other color to be added.

Returns:

The added color.

miColor operator-	(	const miColor &	lhs,
		const miColor &	rhs
	)			[inline]

Subtract two colors.

This returns a color representing the difference of the two operands. The alpha channel is also included.

Parameters:

[in]	lhs	The color to be subtracted from.
[in]	rhs	The color to subtract.

Returns:

The color difference.

miColor operator/	(	const miColor &	lhs,
		const int &	rhs
	)			[inline]

Divide a color by an integer.

This returns a color whose components have each been divided by an integer (including the alpha component).

Parameters:

[in]	lhs	The color to be divided.
[in]	rhs	The divisor.

Returns:

The divided color.

miColor operator/	(	const miColor &	lhs,
		const miScalar &	rhs
	)			[inline]

Divide a color by a scalar.

This returns a color whose components have each been divided by a scalar (including the alpha component).

Parameters:

[in]	lhs	The color to be divided.
[in]	rhs	The divisor.

Returns:

The divided color.
