Visualize Displacement

In this step, we animate the displacement of the pin.

1. To show the rod eye transparently, right-click on its entry in the Results tab of the Browser, and click Draw Transparently.

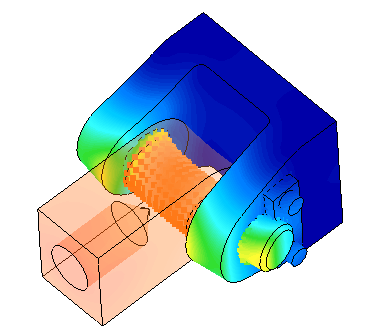

   You should see this…



2. To animate the displacement, click Play from the Captures panel.

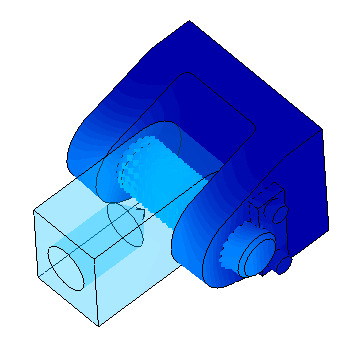

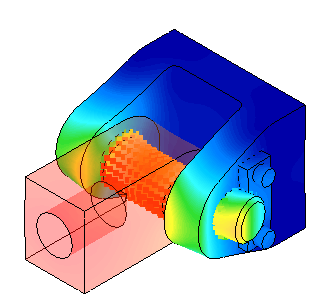

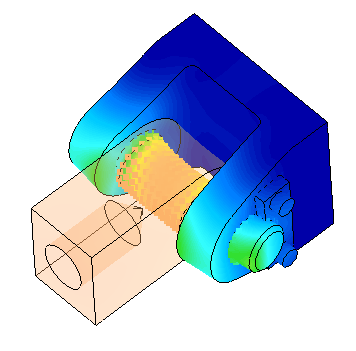

   You should see this…







3. When you are ready to proceed, click Stop.
