Generate the Mesh

In this step, we define and generate the mesh.

1. Click Mesh 3D Mesh Settings.

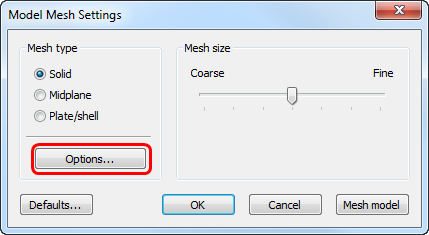

2. Click Options...

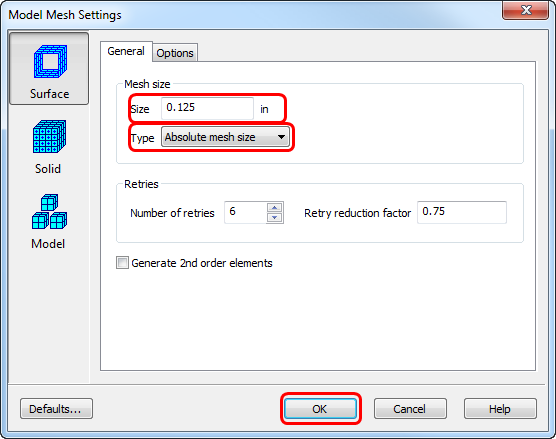

3. Set the Type to Absolute mesh size. Enter a size of 0.125, and click OK.

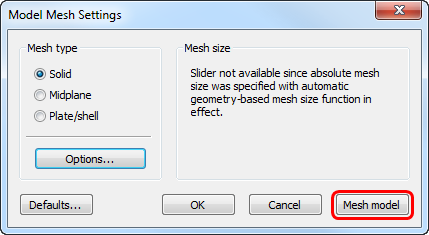

4. Click Mesh model.



5. When asked if you want to view the meshing results, click No.

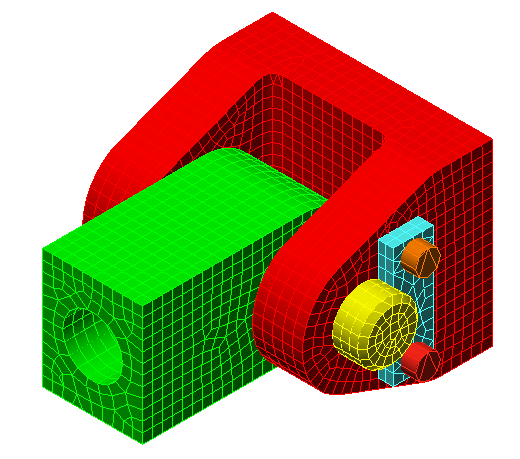

   What it should look like...
