Pressure Vessel PV/Designer Model

In this tutorial, we step through the creation of a pressure vessel using PV/Designer.

Features Illustrated:

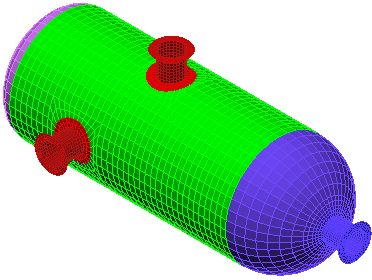

• Use PV/Designer to create a structured mesh plate/shell model of a pressure vessel…
  • Define cylinder geometry
  • Define heads of various shapes
  • Define cylinder and head nozzles
  • Define reinforcement pads (repads)
  • Define flanges
