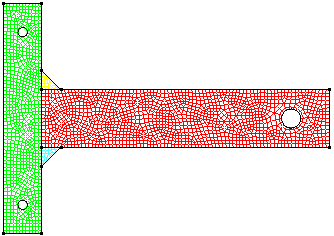

In this tutorial, we step through the creation of a 2-D weldment in Autodesk Simulation Mechanical. The model is used in the subsequent 2-D Weldment Static Stress Analysis tutorial.
Features Illustrated:
- Create construction objects
- Copy objects
- Intersect objects
- Mirror objects
- Create a 2-D mesh
