Analyze the Model

  1. Click Analysis Analysis Run Simulation. The analysis proceeds and the model displays in the Results environment.

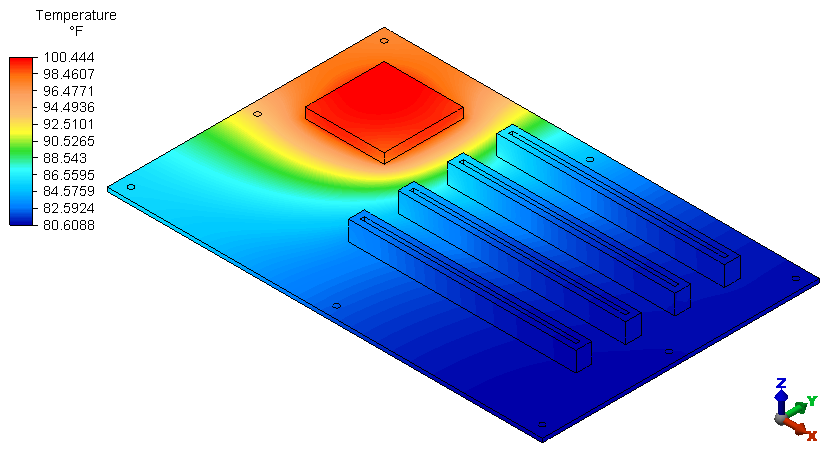

  2. If the thermal load symbols are visible, click   Results Options View Loads and Constraints to hide them.  The model should look like the following image, which shows the results for the final time step.
