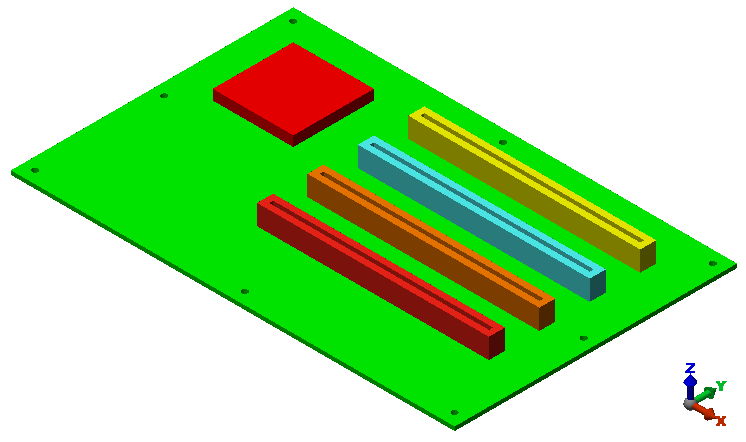

In this tutorial, we determine the temperature profile versus time of a circuit board. We start the simulation using the steady-state operating temperatures from a previous analysis. We observer the rate of cooling after heat generation stops and the rate of reheating when heat generation resumes.
Features Illustrated:
- Brick elements
- Convection loads
- Internal heat generation
- Time-dependent loads
- Transient heat transfer analysis
- Review transient thermal results
