To Filter Components by Status in the Location View Tab

Filter components in your component tree view based on link status.

1. Click Project tabProject Tools panelManager. Find

2. In the Project Manager, click the Location View tab.

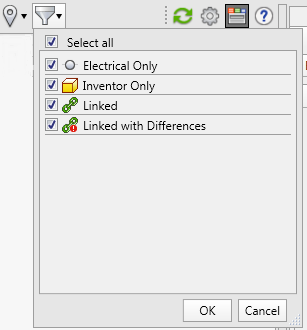

3. In the Location View, click Filter by Component Status .

   Note: The Filter by Component Status button is available when you have a linked AutoCAD Electrical and Inventor project.

4. Clear Select All, and select the values you want to show in your component tree view.



5. Click OK.
