Use the Right Angle Course function to construct line definitions for buildings. At least two coordinates (existing points) must be defined. A right angle (outline size) must be measured between the known points.

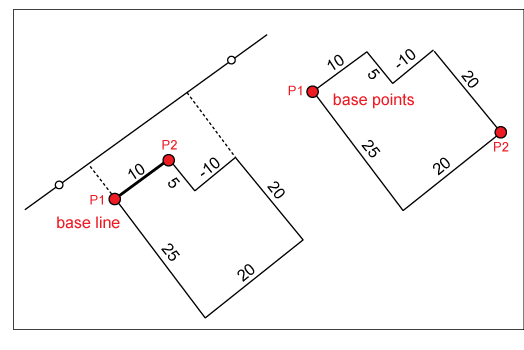

You can construct the line in either of two modes:
- Point Mode: Use two arbitrary corner points that are connected by measured sections.
- Base Line Mode: Starting with two points, specify the base line for further sections.
The Administrator can specify the construction mode in the application options. For more information, see the “Infrastructure Administrator Guide.”
Right Angle Course. Construct a line feature from measured distances based on corner points.
