When converting data to design objects, you can also convert domain values in the source to the corresponding domain value in the target. Similarly, you can map model name values in the source to the corresponding model name values in the target.
- In the Mapping Configurations dialog box, select the data source and create attribute mappings.
Use the procedure described in To Convert CAD and GIS Data to Design Features.

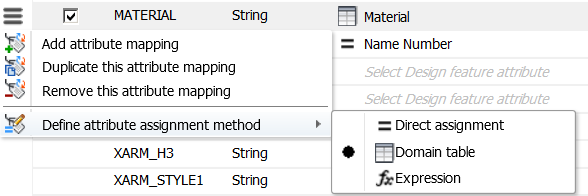

- In the Schema attribute list, for the first domain value attribute of interest, click Actions
Define Attribute Assignment Method Domain Table.

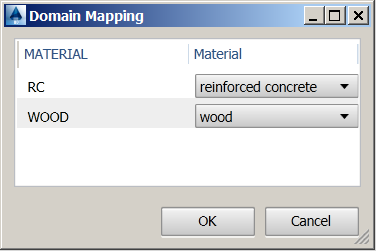

- In the Domain Mapping dialog box, create the mapping between the source values and the target values.
