- If there is more than one exterior edge to the electrode regions (for example, if you have selected multiple pockets or holes), the

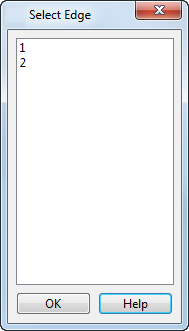

Select Edge dialog is displayed so that you can select the edge to modify.
- Select an edge number. You can also select the edge in the graphics window. The edge is highlighted on the model.
- Click OK to display the Extension Segments dialog.
