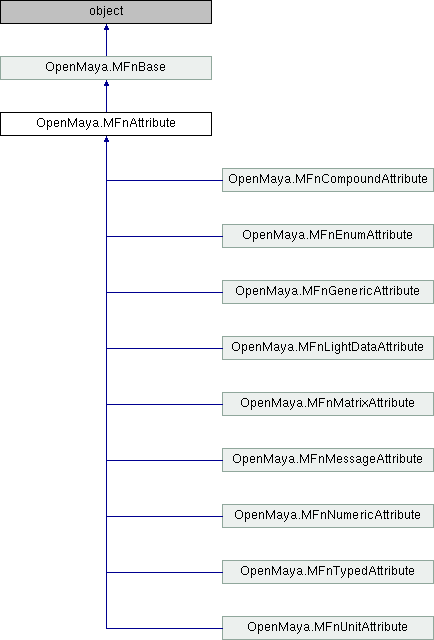

Inheritance diagram for OpenMaya.MFnAttribute:

Public Member Functions
def	__init__ ()

def	accepts ()

def	acceptsAttribute ()

def	addToCategory ()

def	getAddAttrCmd ()

def	hasCategory ()

def	setNiceNameOverride ()

Public Member Functions inherited from OpenMaya.MFnBase
def	__init__ ()

def	hasObj ()

def	object ()

def	setObject ()

def	type ()

Static Public Attributes
Disconnect Behavior
int	kDelete = 0

int	kNothing = 2

int	kReset = 1

Properties
	affectsAppearance = property(...)

	affectsWorldSpace = property(...)

	array = property(...)

	cached = property(...)

	channelBox = property(...)

	connectable = property(...)

	disconnectBehavior = property(...)

	dynamic = property(...)

	extension = property(...)

	hidden = property(...)

	indeterminant = property(...)

	indexMatters = property(...)

	internal = property(...)

	isProxyAttribute = property(...)

	keyable = property(...)

	name = property(...)

	parent = property(...)

	readable = property(...)

	renderSource = property(...)

	shortName = property(...)

	storable = property(...)

	usedAsColor = property(...)

	usedAsFilename = property(...)

	usesArrayDataBuilder = property(...)

	worldSpace = property(...)

	writable = property(...)

Detailed Description

Base class for attribute functionsets.

Method resolution order:
-   MFnAttribute
-   MFnBase
-   __builtin__.object

Base Class

MFnBase<h2>Constructors

Signature

Parameters

Description

MFnAttribute()

Default constructor. Returns a new MFnAttribute function set with no Maya object attached.

MFnAttribute(object)

object - MObject

Returns a new MFnAttribute function set, attached to the specified Maya object.

Constructor & Destructor Documentation

def OpenMaya.MFnAttribute.__init__ ( )

x.__init__(...) initializes x; see x.__class__.__doc__ for signature

Member Function Documentation

OpenMaya.MFnAttribute.accepts ( )

Returns True if this attribute can accept a connection of the given type.

Signature:	accepts(type)
Parameters:	type - MTypeId or MFn Type constant
Returns:	bool
Description:	Returns True if this attribute can accept a connection of the given type.

def OpenMaya.MFnAttribute.acceptsAttribute ( )

Returns True if this attribute can accept a connection with the given attribute.

def OpenMaya.MFnAttribute.addToCategory ( )

Adds the attribute to a category

OpenMaya.MFnAttribute.getAddAttrCmd ( )

Returns a string containing a MEL 'addAttr' command capable of recreating the attribute.

Signature:	getAddAttrCmd(longFlags=False)
Parameters:	longFlags - bool
Returns:	string
Description:	Returns a string containing the addAttr command which would be required to recreate the attribute. The command includes the terminating semicolon and is formatted as if for use with a selected node, meaning that it contains no node name. If longFlags is True then the long flag names will be used, otherwise their short names will be used.

def OpenMaya.MFnAttribute.hasCategory ( )

Checks to see if the attribute has a given category

def OpenMaya.MFnAttribute.setNiceNameOverride ( )

Sets a nice UI name for this attribute rather than using the default derived from it's long name.

Member Data Documentation

OpenMaya.MFnAttribute.kDelete = 0

static

Name:	kDelete
Type:	int
Description:	Delete array element (array attributes only).

OpenMaya.MFnAttribute.kNothing = 2

static

Name:	kNothing
Type:	int
Description:	Do nothing to the attribute's value.

OpenMaya.MFnAttribute.kReset = 1

static

Name:	kReset
Type:	int
Description:	Reset the attribute to its default.

Property Documentation

OpenMaya.MFnAttribute.affectsAppearance = property(...)

static

 Does the attribute affect how the node is drawn in Maya's viewport?

Name:	affectsAppearance
Type:	bool
Access:	RW
Description:	Does attr affect appearance of object when rendered in the viewport?

OpenMaya.MFnAttribute.affectsWorldSpace = property(...)

static

 Does the attribute affect the node's worldSpace matrix?

Name:	affectsWorldSpace
Type:	bool
Access:	RW
Description:	DAG nodes only. Does the attr affect the node's world-space state?

OpenMaya.MFnAttribute.array = property(...)

static

 Is the attribute an array?

Name:	array
Type:	bool
Access:	RW
Description:	Is attr an array?

OpenMaya.MFnAttribute.cached = property(...)

static

 Should the attribute's value be cached in the datablock?

Name:	cached
Type:	bool
Access:	RW
Description:	Should attr value be cached in the datablock?

OpenMaya.MFnAttribute.channelBox = property(...)

static

 Should the attribute be displayed in the Channel Box?

Name:	channelBox
Type:	bool
Access:	RW
Description:	Should attr appear in Channel Box?

OpenMaya.MFnAttribute.connectable = property(...)

static

 Can connections be made to the attribute?

Name:	connectable
Type:	bool
Access:	RW
Description:	Is attr connectable?

OpenMaya.MFnAttribute.disconnectBehavior = property(...)

static

 What should happen when the attribute loses an incoming connection?

Name:	disconnectBehavior
Type:	Disconnect Behaviour constant
Access:	RW
Description:	What should happen when attr loses an incoming connection?

OpenMaya.MFnAttribute.dynamic = property(...)

static

 Is the attribute a dynamic attribute?

Name:	dynamic
Type:	bool
Access:	R
Description:	Is it a dynamic attr?

OpenMaya.MFnAttribute.extension = property(...)

static

 Is the attribute an extension attribute?

Name:	extension
Type:	bool
Access:	R
Description:	Is it an extension attr?

OpenMaya.MFnAttribute.hidden = property(...)

static

 If True the attribute will not be displayed in the Attribute Editor.

Name:	hidden
Type:	bool
Access:	RW
Description:	If True attr will not be displayed in the Attribute Editor.

OpenMaya.MFnAttribute.indeterminant = property(...)

static

 Hint to DG that this attribute may not always be used when computing the attributes which are dependent upon it.

Name:	indeterminant
Type:	bool
Access:	RW
Description:	Hint to DG that this attr may not always be used when computing the attrs which are dependent upon it.

OpenMaya.MFnAttribute.indexMatters = property(...)

static

 If False, connectAttr -nextAvailable can be used with this attribute. If True then an explicit index must be provided.

Name:	indexMatters
Type:	bool
Access:	RW
Description:	If False, connectAttr -nextAvailable can be used with this attr. If True then an explicit index must be provided.

OpenMaya.MFnAttribute.internal = property(...)

static

 Will the node handle the attribute's data storage itself, outside of the node's data block?

Name:	internal
Type:	bool
Access:	RW
Description:	Will the node handle the attr's data storage itself, outside of the node's data block?

OpenMaya.MFnAttribute.isProxyAttribute = property(...)

static

 Does the attribute is a proxy attribute?

OpenMaya.MFnAttribute.keyable = property(...)

static

 Can keys be set on the attribute?

Name:	keyable
Type:	bool
Access:	RW
Description:	Can keys be set on attr?

OpenMaya.MFnAttribute.name = property(...)

static

 Attribute's long name.

Name:	name
Type:	string
Access:	R
Description:	Attr's long name.

OpenMaya.MFnAttribute.parent = property(...)

static

 Parent attribute. MObject::kNullObj if attr has no parent.

Name:	parent
Type:	MObject
Access:	RW
Description:	Parent attr. MObject::kNullObj if attr has no parent.

OpenMaya.MFnAttribute.readable = property(...)

static

 Is the attribute readable?

Name:	readable
Type:	bool
Access:	RW
Description:	Is attr readable?

OpenMaya.MFnAttribute.renderSource = property(...)

static

 Is the attribute a render source?

Name:	renderSource
Type:	bool
Access:	RW
Description:	Is attr a render source?

OpenMaya.MFnAttribute.shortName = property(...)

static

 Attribute's short name.

Name:	shortName
Type:	string
Access:	R
Description:	Attr's short name.

OpenMaya.MFnAttribute.storable = property(...)

static

 Should the attribute's value be preserved when the node is written to file?

Name:	storable
Type:	bool
Access:	RW
Description:	Should attr value be stored when written to file?

OpenMaya.MFnAttribute.usedAsColor = property(...)

static

 Should the attribute be treated as a color in the UI?

Name:	usedAsColor
Type:	bool
Access:	RW
Description:	Should attr be treated as a color in the UI?

OpenMaya.MFnAttribute.usedAsFilename = property(...)

static

 Should the attribute be treated as a file name in the UI?

Name:	usedAsFilename
Type:	bool
Access:	RW
Description:	Should attr be treated as a filename in the UI?

OpenMaya.MFnAttribute.usesArrayDataBuilder = property(...)

static

 Array attributes only: does the attribute create elements using MArrayDataBuilder?

Name:	usesArrayDataBuilder
Type:	bool
Access:	RW
Description:	Array attrs only. Does attr create elements using MArrayDataBuilder?

OpenMaya.MFnAttribute.worldSpace = property(...)

static

 DAG nodes only: if the node is instanced, will the attribute have separate values for each instance?

Name:	worldSpace
Type:	bool
Access:	RW
Description:	DAG nodes only. If the node is instanced, will the attr have separate values for each instance?

OpenMaya.MFnAttribute.writable = property(...)

static

 Is the attribute writable?

Name:	writable
Type:	bool
Access:	RW
Description:	Is attr writable?
