OpenMaya.MFnComponent Class Reference

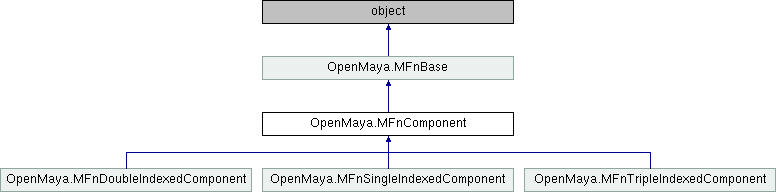

Inheritance diagram for OpenMaya.MFnComponent:

Public Member Functions
def	__init__ ()
def	isEqual ()
def	weight ()
Public Member Functions inherited from OpenMaya.MFnBase
def	__init__ ()
def	hasObj ()
def	object ()
def	setObject ()
def	type ()

Properties
	componentType = property(...)
	elementCount = property(...)
	hasWeights = property(...)
	isComplete = property(...)
	isEmpty = property(...)

Detailed Description

This is the base class for all function sets which deal with
component objects.

__init__()
Initializes a new, empty MFnComponent object
__init__(MObject component)
Initializes a new MFnComponent function set, attached to the specified component.

Method resolution order:
-   MFnComponent
-   MFnBase
-   __builtin__.object

---

Base Class

MFnBase

Constructors

Signature	Parameters	Description
MFnComponent()		Default constructor. Returns a new, empty MFnComponent object.
MFnComponent(component)	component - MObject	Returns a new MFnComponent function set, attached to the specified component.



---

Constructor & Destructor Documentation

def OpenMaya.MFnComponent.__init__

(

)

x.__init__(...) initializes x; see x.__class__.__doc__ for signature

Member Function Documentation

OpenMaya.MFnComponent.isEqual

(

)

isEqual(MObject other) -> bool

Returns True if other refers to the same component as the
one to which the function set is currently attached.

Signature:	isEqual(other)
Parameters:	other - MObject
Returns:	bool
Description:	Returns true if other refers to the same component as the one to which the function set is currently attached.

OpenMaya.MFnComponent.weight

(

)

weight(index) -> MWeight

Returns the weight associated with the specified element,
where index can range from 0 to elementCount-1.

Signature:	weight(index)
Parameters:	index - int
Returns:	MWeight
Description:	Returns the weight associated with the specified element, where index can range from 0 to elementCount-1.

Property Documentation

OpenMaya.MFnComponent.componentType = property(...)

static

 Type of the component. (MFn Type constant)

Name:	componentType
Type:	MFn Type constant
Access:	R
Description:	Type of the component.

OpenMaya.MFnComponent.elementCount = property(...)

static

 Number of elements in the component.

Name:	elementCount
Type:	int
Access:	R
Description:	Number of elements in the component.

OpenMaya.MFnComponent.hasWeights = property(...)

static

 True if the component has weights associated with its elements.

Name:	hasWeights
Type:	bool
Access:	R
Description:	True if the component has weights associated with its elements.

OpenMaya.MFnComponent.isComplete = property(...)

static

 Marking a component as complete means that it represents a full set
 of indices from 0 to elementCount-1

Name:	isComplete
Type:	bool
Access:	RW
Description:	Marking a component as complete means that it represents a full set of indices from 0 to numElements()-1

OpenMaya.MFnComponent.isEmpty = property(...)

static

 True if the component contains no elements.

Name:	isEmpty
Type:	bool
Access:	R
Description:	True if the component contains no elements.
