OpenMaya.MFnData Class Reference

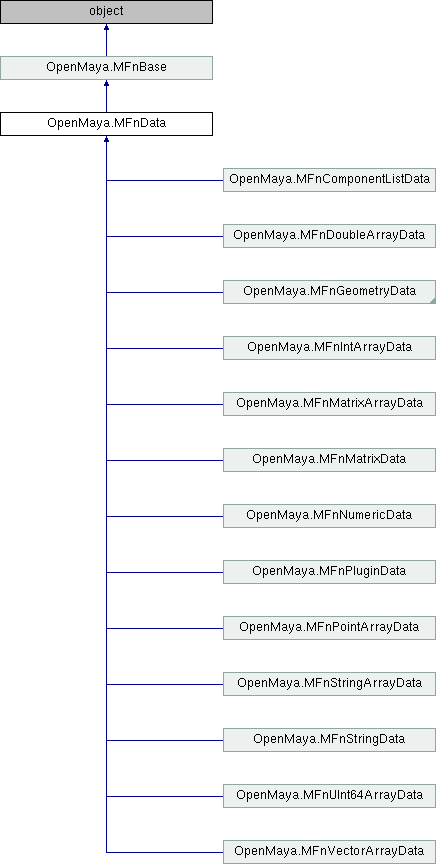

Inheritance diagram for OpenMaya.MFnData:

Public Member Functions
def	__init__ ()
Public Member Functions inherited from OpenMaya.MFnBase
def	__init__ ()
def	hasObj ()
def	object ()
def	setObject ()
def	type ()

Static Public Attributes
int	kAny = 24
int	kFloatArray = 8
int	kMatrixArray = 12
Data Object Types
int	kComponentList = 13
int	kDoubleArray = 7
int	kDynArrayAttrs = 19
int	kDynSweptGeometry = 20
int	kIntArray = 9
int	kInvalid = 0
int	kLast = 25
int	kLattice = 15
int	kMatrix = 5
int	kMesh = 14
int	kNId = 23
int	kNObject = 22
int	kNumeric = 1
int	kNurbsCurve = 16
int	kNurbsSurface = 17
int	kPlugin = 2
int	kPluginGeometry = 3
int	kPointArray = 10
int	kSphere = 18
int	kString = 4
int	kStringArray = 6
int	kSubdSurface = 21
int	kVectorArray = 11

Detailed Description

Base class for dependency graph data function sets.

Method resolution order:
-   MFnData
-   MFnBase
-   __builtin__.object

---

Base class for data function sets.

Base Class

MFnBase<h2>Constructors

Signature	Parameters	Description
MFnData()		Default constructor. Returns a new MFnData function set with no Maya object attached.
MFnData(object)	object - MObject	Returns a new MFnData function set, attached to the specified Maya object.



---

Constructor & Destructor Documentation

def OpenMaya.MFnData.__init__

(

)

x.__init__(...) initializes x; see x.__class__.__doc__ for signature

Member Data Documentation

OpenMaya.MFnData.kComponentList = 13

static

Name:	kComponentList
Type:	int
Description:	Use MFnComponentListData to extract data.

OpenMaya.MFnData.kDoubleArray = 7

static

Name:	kDoubleArray
Type:	int
Description:	Use MFnDoubleArrayData to extract data.

OpenMaya.MFnData.kDynArrayAttrs = 19

static

Name:	kDynArrayAttrs
Type:	int
Description:	Use MFnArrayAttrsData to extract data.

OpenMaya.MFnData.kDynSweptGeometry = 20

static

Name:	kDynSweptGeometry
Type:	int
Description:	Use MFnDynSweptGeometryData to extract data.

OpenMaya.MFnData.kIntArray = 9

static

Name:	kIntArray
Type:	int
Description:	Use MFnIntArrayData to extract data.

OpenMaya.MFnData.kInvalid = 0

static

Name:	kInvalid
Type:	int
Description:	Invalid value.

OpenMaya.MFnData.kLast = 25

static

Name:	kLast
Type:	int
Description:	Last item. Used for counting.

OpenMaya.MFnData.kLattice = 15

static

Name:	kLattice
Type:	int
Description:	Use MFnLatticeData to extract data.

OpenMaya.MFnData.kMatrix = 5

static

Name:	kMatrix
Type:	int
Description:	Use MFnMatrixData to extract data.

OpenMaya.MFnData.kMesh = 14

static

Name:	kMesh
Type:	int
Description:	Use MFnMeshData to extract data.

OpenMaya.MFnData.kNId = 23

static

Name:	kNId
Type:	int
Description:	Use MFnNIdData to extract data.

OpenMaya.MFnData.kNObject = 22

static

Name:	kNObject
Type:	int
Description:	Use MFnNObjectData to extract data.

OpenMaya.MFnData.kNumeric = 1

static

Name:	kNumeric
Type:	int
Description:	Use MFnNumericData to extract data.

OpenMaya.MFnData.kNurbsCurve = 16

static

Name:	kNurbsCurve
Type:	int
Description:	Use MFnNurbsCurveData to extract data.

OpenMaya.MFnData.kNurbsSurface = 17

static

Name:	kNurbsSurface
Type:	int
Description:	Use MFnNurbsSurfaceData to extract data.

OpenMaya.MFnData.kPlugin = 2

static

Name:	kPlugin
Type:	int
Description:	Use MFnPluginData to extract data.

OpenMaya.MFnData.kPluginGeometry = 3

static

Name:	kPluginGeometry
Type:	int
Description:	Use MFnGeometryData to extract data.

OpenMaya.MFnData.kPointArray = 10

static

Name:	kPointArray
Type:	int
Description:	Use MFnPointArrayData to extract data.

OpenMaya.MFnData.kSphere = 18

static

Name:	kSphere
Type:	int
Description:	Use MFnSphereData to extract data.

OpenMaya.MFnData.kString = 4

static

Name:	kString
Type:	int
Description:	Use MFnStringData to extract data.

OpenMaya.MFnData.kStringArray = 6

static

Name:	kStringArray
Type:	int
Description:	Use MFnStringArrayData to extract data.

OpenMaya.MFnData.kSubdSurface = 21

static

Name:	kSubdSurface
Type:	int
Description:	Use MFnSubdData to extract data.

OpenMaya.MFnData.kVectorArray = 11

static

Name:	kVectorArray
Type:	int
Description:	Use MFnVectorArrayData to extract data.
