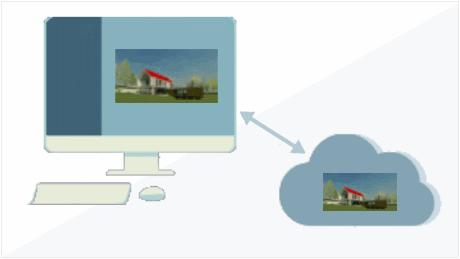

Share models with project stakeholders in the cloud. Shared views allows you to share you model with anyone, even if they do not have Revit.
Use a custom browser to find and load Autodesk content from the cloud into your model. Search the default content libraries across multiple languages to find just the right family.
Reposition models in your projects more easily. Remove the shared coordinate relationship between model files with one click and reestablish shared coordinates across the project when necessary.

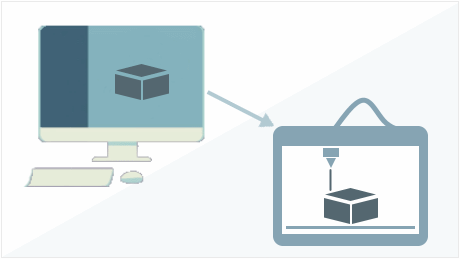

Export your models from Revit to an STL file without an add-on. Use the STL file for 3D printing your models.

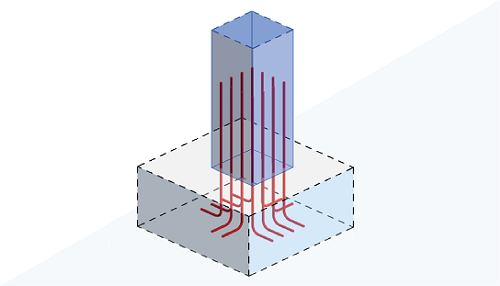

You can now more easily identify the host for one or more selected rebar sets, area or path reinforcement.
Visual and material fidelity of models converted from FormIt and opened in Revit have been enhanced.
P&ID Modeler for Revit supports Europe data centers. Revit can now connect to Plant 3D Collaboration projects on Europe data centers.
Learn about recent enhancements to Generative Design in Revit.
Civil Structures can be exported to Revit from InfraWorks using the Export Civil Structures workflow.
Improvements make importing SAT and rhino files more reliable than in previous releases. Incidents of not being able to import geometry are reduced. SAT and Rhino files will have better fidelity when imported.
Added support for the import of 2020 format SketchUp files.
To better support information workflows, many new unit types are available for use in parameters.
Revit 2021.1 includes a number of user interface improvements to make working easier.
When you acquire shared coordinates from a linked file, you now receive a confirmation message. The message tells you the process completed successfully and the GIS coordinate system that was acquired if the linked file contains one.
Ninety new Dynamo nodes are available in several categories, allowing you to easily manipulate Revit element functions.
New parameters for set points for heating, cooling, humidification, and dehumidification have been added to the building types and space types for use with Systems Analysis.
Leverage computing power to quickly generate and explore alternatives to a design problem based on your goals and constraints.
This feature provides a superior replacement for realistic views.
Create slanted walls and slanted curtain walls using the standard Wall tool. Slanted walls can host elements like doors, windows, electrical features, wall sweeps, and more.
Link a 2D PDF file or a raster image into a 2D view for reference without increasing the size of the model or affecting performance. Then remove the file when it's no longer needed.
A flexible method for defining circuit naming schemes helps support conventions in different regions of the world.
Cloud models can now be hosted on Europe data centers.
Enable and disable view filters in the Visibility/Graphics dialog. View filter effects are turned on and off instead of adding and removing filters for the view.
You can define 3D rebar shapes by rotating the hooks at the ends of the bars, model rebar chairs (sanders) or other 3D bars, and extract full fabrication data in the schedules.
Updates to Revit Home provide a consistent experience for BIM 360 account and project navigation between Autodesk products, such as Revit and Civil 3D.
For detailed steel modeling, the Revit steel connections list now includes stiffeners. This new family type consists of one or two steel plates that reinforce a beam or column section, welded to the input beam or column.
Create a user profile that allows Revit to provide a workspace recommendation that is tailored to your work discipline and job role.
To make a large schedule easier to read, set the Stripe Rows feature to display rows in contrasting colors.
When you collaborate with others using Plant 3D, P&ID Modeler for Revit now references P&ID drawings stored in BIM 360 Document Management.
To more easily work with linked models, you can display coordinates of linked models in the host model. These coordinates include the survey point, project base point, and internal origin.
Parameter names for circuit quantity on switchboards and panelboards have been improved.
The family parameter Rotate with Component has been added to more tag categories. In addition, text rotation in section heads is improved.
Revit 2021 includes several performance improvements.
The steel connections nodes dedicated to placing steel connections are provided with the Revit installation, as part of Dynamo for Revit.
The former structural precast extension is now integrated into Revit with a dedicated Precast tab on the ribbon.
Easily specify the hook lengths for each rebar in the project, without the need to duplicate the hook type and change the length for that type.
Worksharing with MEP Elements has been improved to provide a more consistent experience and enable better collaboration among stakeholders.
To better support distribution systems commonly found outside the US, Revit supports single phase two-wire line-to-neutral panelboards.
Use the Switch Phases tool to assign a phase to a circuit in a switchboard panel.
The Sheets section of the Project Browser lists the panel schedules that appear on each sheet.
The Frame parameter is now available for spare circuits, and it displays in panel schedules.
Formerly an add-on, Integrated Structural Analysis Storage and Exploration is now integrated into Revit, available on the Analyze tab of the ribbon.
In the Design Options dialog, option sets and design options are automatically sorted in alphanumeric order.
Voids used in families have a new parameter: Cuts Geometry.
This release includes updates for rebar end treatments, couplers connecting to arc-shaped rebar, and 3D solid fabric sheet visualisation.
You can now create steel elements such as plates, bolt patterns and contour cuts directly in elevation and section views and edit them in any type of view.
Learn about enhancements and new features in the Advance Steel 2021 Extension for Revit.
Ten new Dynamo nodes are available under the Element category, allowing you to easily manipulate Revit element functions.
New categories to better support bridge design in Revit. This feature supports the Civil Structures Workflow with Autodesk InfraWorks and Revit.
To better support infrastructure design, Revit supports decimal US survey feet as a length unit.
