フラグメントのサンプル スクリプト

説明:

次の例は、Parray パーティクル システムと Mesher Compound オブジェクトを使用してその場でオブジェクト フラグメントを生成するフラグメントのサンプル スクリプトを示しています。

用途:

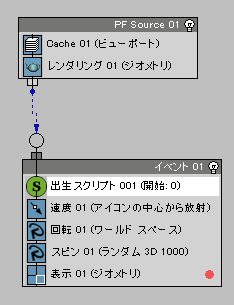

Birth_Script アクション内で、フラグメント パーティクルを作成するために使用します。

効果:

Init ハンドラ内で、スクリプトは、フラグメントを保持するためのフラグメント ソース オブジェクト、単一の PArray、単一の Mesher Compound、および 2 つの編集可能メッシュを用意します。次に、PArray を Mesher に割り当てます。

Proceed ハンドラで、スクリプトは、パーティクル システムの時間がフレーム 0 で、パーティクルが存在していないことを確認します。この場合、スクリプトは Mesher から PArray のメッシュを取得し、そのメッシュを要素に分解し、新しいパーティクルを発生させ、それらにメッシュとフラグメントの位置を割り当てます。

スクリプトによってフラグメントのあるパーティクルが作成されたら、それらは通常どおり パーティクル フロー のオペレータで制御できます。

例:

    --The ChannelsUsed handler defines the channels
    --to be made available to the script.
    --For the list of all channels, see
    --Interface: MaxscriptParticleContainer
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on ChannelsUsed pCont do
    (
    pCont.useTime = true--enable the Time channel
    pCont.useAge = true--enable the Age channel
    pCont.usePosition = true--enable the Position channel
    pCont.useSpeed = true--enable the Speed channel
    pCont.useShape = true--enable the Shape channel
    )

    --The Init handler is called on initialization.
    --This is where preparation works can be performed.
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on Init pCont do
    (
    -- Create a geometry primitive to break into fragments.
    global bb = $Teapot_69e13b6c--a unique name
    -- Create a PArray particle system to create the fragments.
    global a = $PArray_36ce15a4--a unique name
    -- Create a Mesher Compound object to turn PArray into mesh.
    global mshr = $Mesher_23951616--a unique name
    -- Create a mesh to hold the total mesh.
    global totalMesh = $EMesh_5990501d--a unique name
    -- Create a mesh to hold separate fragments.
    global fragmentMesh = $EMesh_1589735c-- a unique name
    --Disable screen redraw to speed up execution
    withredrawoff(
    -- If the source object does not exist in the scene...
    if (bb == undefined) then (
    -- create a Teapot for fragmentation, give it a unique name
    bb = Teapot radius:20 smooth:on segs:6 body:on handle:on spout:on lid:on mapCoords:off
    bb.name ="Teapot_69e13b6c"
    hide bb-- hide the teapot
    )
    -- If the PArray object does not exist in the scene...
    if (a == undefined) then
    (
    -- Create and setup a PArray
    a = PArray()
    a.name ="PArray_36ce15a4"
    a.speed = 0
    a.emitter = b
    ba.particleType = 2
    a.viewtype = 2
    hide a
    )
    -- If the Mesher object does not exist in the scene...
    if (mshr == undefined) then (
    -- Create a Mesher Compound Object
    -- The Mesher gets mesh data out of the PArray
    mshr = mesher()
    mshr.name ="Mesher_23951616"
    mshr.pick = a-- Assign the Parray to the Mesher
    select mshr
    modPanel.addModToSelection (Edit_Mesh ()) ui:on
    clearSelection()
    hide mshr
    )

    -- If the total Emesh object does not exist in the scene...
    if(totalMesh == undefined)then(
    -- Create a new editable meshes with unique name
    totalMesh = editable_mesh()
    totalMesh.name ="EMesh_5990501d"
    hide totalMesh
    )
    -- If the fragments Emesh object does not exist in the scene...
    if(fragmentMesh == undefined)then(
    -- to create editable meshes our of Mesher
    fragmentMesh = editable_mesh()
    fragmentMesh.name ="EMesh_1589735c"
    hide fragmentMesh
    )
    )
    )
    --The Proceed handler contains the particle creating script

    --The parameter pCont passed to the handler

    --contains the Particle Container the script is applied to:

    on Proceed pCont do(
    -- Get the time range
    t1 = pCont.getTimeStart() as float
    t2 = pCont.getTimeEnd() as float
    -- Only if the current time is at moment 0...
    if((t1 <= 0) and (t2 >= 0))then(
    -- Initialize a counter
    i = 0
    -- If there are still no particles in the system
    if(pCont.NumParticles() <= 0)then
    (
    print("should be making fragments")
    -- You can modify the fragmentation parameters here:
    a.Fragment_Thickness = 1
    a.fragmentmethod = 1
    a.fragChunkMinimum = 202
    -- Get the complete mesh from the mesher
    totalMesh.mesh = mshr.mesh
    -- Create a bitarray with all faces set
    print("assigning particles")
    -- Repeat while there are still faces in the mesh
    while totalMesh.numfaces != 0 do
    (
    -- Get the mesh element the first face belongs to
    el = meshop.getelementsusingface totalMesh #{1}
    -- Detach the faces of the element
    tMesh = meshop.detachFaces totalMesh el delete:true asMesh:true
    -- Set the mesh of the fragment Emesh to the element
    fragmentMesh.mesh = tMesh
    -- Update the fragment Emesh
    update fragmentMesh
    -- Get the center of the fragment mesh
    meshCenter = fragmentMesh.center
    -- The original particle position is the center of the fragment
    particlePos = fragmentMesh.center
    -- Adjust vertex location to center around the chunk pivot
    for j in 1 to fragmentMesh.verts.count do
    (
    curVert = getVert fragmentMesh.mesh j
    curVert = curVert - meshCenter
    setVert fragmentMesh.mesh j curVert
    )
    -- Move the pivot of the fragment to the original center
    -- of the fragment
    fragmentMesh.pivot = meshCenter
    -- Give birth to a new particle
    pCont.AddParticle()
    -- Increase the counter
    i += 1
    -- Set the current particle index to the counter
    pCont.particleIndex = i
    -- Set particle time and age to 0 (newborn particle!)
    pCont.particleTime = 0
    pCont.particleAge = 0
    -- Set the particle’s position to the original fragment position
    pCont.particlePosition = particlePos
    -- Reset the speed to 0
    pCont.particleSpeed = [0,0,0]
    -- Set the shape of the particle to the mesh of the fragment
    pCont.particleShape = fragmentMesh.mesh
    )
    print("assigned particles "+ (pCont.NumParticles() as string))
    )
    )
    )

    --The Release handler is used to do cleanup work.
    --Not used in this case.
    on Release pCont do
    (

    )
