ビュー依存のパーティクル解像度の例

説明:

カメラからの距離に基づいてパーティクル解像度を制御する方法の例を示します。

用途:

Script_Operator オペレータで使用する必要があります。

効果:

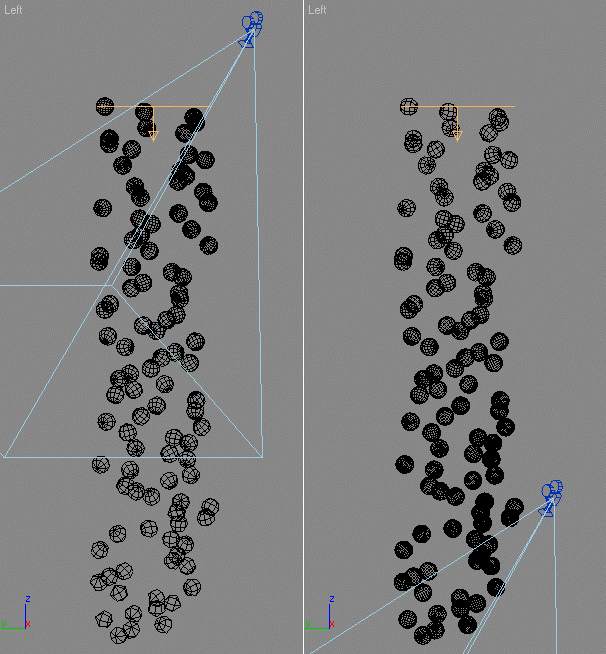

スクリプトは、シーンの Sphere プリミティブを各パーティクルのシェイプとして使用し、ハードコードされたカメラ $Camera001 までの距離に基づいてセグメントを設定します。パーティクルとカメラ間の距離が長いほど、取得ポリゴン数が少なくなります。

例:

    --The ChannelsUsed handler defines the channels
    --to be made available to the script.
    --For the list of all channels, see
    --Interface: MaxscriptParticleContainer
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on ChannelsUsed pCont do
    (
    pCont.useShape = true --Enable the Shape channel
    pCont.usePosition = true --Enable the Position channel
    pCont.useScale = true --Enable the Scale channel
    )
    --The Init handler is called on initialization.
    --In this case, it is used to define and, if necessary, create
    --the source of particle shapes
    on Init pCont do
    (
    -- Get the shape source primitive by name.
    -- Use random name to avoid conflict with other objects in the scene
    global sph = $SphereDynamic2468975

    -- In case the object does not exist, create it
    if sph == undefined then
    (
    sph = Sphere()
    -- Give the object a unique name
    sph.name ="SphereDynamic2468975"
    -- Set the radius to one.
    sph.radius = 1.0
    -- Hide the Sphere
    hide sph
    )
    )

    --The Proceed handler contains the main script
    --applied to the Particles.
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to:
    on Proceed pCont do
    (
    --If there is a camera named Camera001 in the scene...
    if $Camera001 != undefined then
    (
    --Get the current total particles count:
    count = pCont.NumParticles()

    --Loop through all particles:
    for i in 1 to count do
    (

    --Set the current particle index:
    pCont.particleIndex = i

    --Modify the pre-created sphere with radius
    --based on the particle size:
    sph.radius = pCont.particleScale

    --Modify segments based on the distance to the camera
    --called $Camera01
    --At distance of 500.0 units the segments will be set to 2
    --At distance of 250.0 the segments will be 4, at 100 units 10 etc.
    --Change the function to get the desired falloff
    sph.segs = 1000.0/(length (pCont.particlePosition - $Camera01.pos))

    --Set the shape of the particle to the TriMesh of the Sphere
    pCont.particleShape = sph.mesh
    )--end i loop
    )--end if
    )--end proceed

    --The Release handler is used to do cleanup work.
    --Not used in this case.
    on Release pCont do
    (
    )
