Abstract base class for Attribute interface. More...

#include <attribute.h>

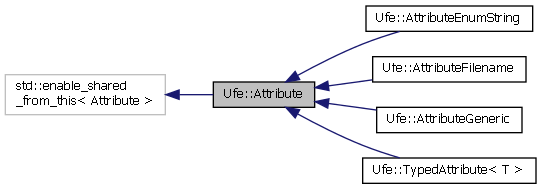

Inheritance diagram for Ufe::Attribute:

[legend]

Collaboration diagram for Ufe::Attribute:

Public Types
typedef std::shared_ptr< Attribute >	Ptr

typedef std::string	Type

Public Member Functions
	Attribute (const SceneItem::Ptr &)
	Constructor. More...

virtual	~Attribute ()

SceneItem::Ptr	sceneItem () const

virtual bool	hasValue () const =0

virtual std::string	name () const =0

virtual std::string	documentation () const =0

virtual Type	type () const =0

virtual std::string	string () const =0


	Attribute (const Attribute &)=delete
	No copy or move constructor/assignment. More...

Attribute &	operator= (const Attribute &)=delete
	No copy or move constructor/assignment. More...

	Attribute (Attribute &&)=delete
	No copy or move constructor/assignment. More...

Attribute &	operator= (Attribute &&)=delete
	No copy or move constructor/assignment. More...


bool	operator== (const Attribute &rhs) const

bool	operator!= (const Attribute &rhs) const

Metadata Access:
virtual Value	getMetadata (const std::string &key) const =0

virtual bool	setMetadata (const std::string &key, const Value &value)=0

virtual UndoableCommand::Ptr	setMetadataCmd (const std::string &key, const Value &value)

virtual bool	clearMetadata (const std::string &key)=0

virtual bool	hasMetadata (const std::string &key) const =0
	Returns true if metadata key has a non-empty value. More...

Static Public Attributes
Built-in attribute types:
static constexpr char	kInvalid [] = "Invalid"

static constexpr char	kBool [] = "Bool"

static constexpr char	kInt [] = "Int"

static constexpr char	kFloat [] = "Float"

static constexpr char	kDouble [] = "Double"

static constexpr char	kString [] = "String"

static constexpr char	kColorFloat3 [] = "ColorFloat3"

static constexpr char	kColorFloat4 [] = "ColorFloat4"

static constexpr char	kFilename [] = "Filename"

static constexpr char	kEnumString [] = "EnumString"

static constexpr char	kInt3 [] = "Int3"

static constexpr char	kFloat2 [] = "Float2"

static constexpr char	kFloat3 [] = "Float3"

static constexpr char	kFloat4 [] = "Float4"

static constexpr char	kDouble3 [] = "Double3"

static constexpr char	kMatrix3d [] = "Matrix3d"

static constexpr char	kMatrix4d [] = "Matrix4d"

static constexpr char	kGeneric [] = "Generic"

Metadata Keys:
static constexpr char	kLocked [] = "Locked"

Private Attributes
const SceneItem::Ptr	fItem

Detailed Description

Abstract base class for Attribute interface.

This base class defines an interface for factory objects that runtimes implement to handle the various supported attribute types (such as bool, int, float, etc).

Definition at line 37 of file attribute.h.

Member Typedef Documentation

◆ Ptr

typedef std::shared_ptr<Attribute> Ufe::Attribute::Ptr

Definition at line 40 of file attribute.h.

◆ Type

typedef std::string Ufe::Attribute::Type

Definition at line 41 of file attribute.h.

Constructor & Destructor Documentation

◆ Attribute() [1/3]

Ufe::Attribute::Attribute ( const SceneItem::Ptr & )

Constructor.

◆ ~Attribute()

virtual Ufe::Attribute::~Attribute ( )

virtual

◆ Attribute() [2/3]

Ufe::Attribute::Attribute ( const Attribute & )

delete

No copy or move constructor/assignment.

◆ Attribute() [3/3]

Ufe::Attribute::Attribute ( Attribute && )

delete

No copy or move constructor/assignment.

Member Function Documentation

◆ clearMetadata()

virtual bool Ufe::Attribute::clearMetadata ( const std::string & key )

pure virtual

Clear the metadata key's value.

Parameters

[in] key The metadata key to clear.

Returns: True if the metadata was cleared successfully, otherwise false.

◆ documentation()

virtual std::string Ufe::Attribute::documentation ( ) const

pure virtual

Returns: The attributes documentation string.

◆ getMetadata()

virtual Value Ufe::Attribute::getMetadata ( const std::string & key ) const

pure virtual

Get the value of the metadata named key.

Parameters

[in] key The metadata key to query.

Returns: The value of the metadata key. If the key does not exist an empty Value is returned.

◆ hasMetadata()

virtual bool Ufe::Attribute::hasMetadata ( const std::string & key ) const

pure virtual

Returns true if metadata key has a non-empty value.

◆ hasValue()

virtual bool Ufe::Attribute::hasValue ( ) const

pure virtual

Returns: true if this attribute has a value.

◆ name()

virtual std::string Ufe::Attribute::name ( ) const

pure virtual

Returns: The attributes name.

◆ operator!=()

bool Ufe::Attribute::operator!= ( const Attribute & rhs ) const

Unfortunately no compiler-generated default equality operators. Attribute names are only unique within a SceneItem, so an Attribute is equal if both the SceneItem (which matches path) and name match.

◆ operator=() [1/2]

Attribute& Ufe::Attribute::operator= ( const Attribute & )

delete

No copy or move constructor/assignment.

◆ operator=() [2/2]

Attribute& Ufe::Attribute::operator= ( Attribute && )

delete

No copy or move constructor/assignment.

◆ operator==()

bool Ufe::Attribute::operator== ( const Attribute & rhs ) const

Unfortunately no compiler-generated default equality operators. Attribute names are only unique within a SceneItem, so an Attribute is equal if both the SceneItem (which matches path) and name match.

◆ sceneItem()

SceneItem::Ptr Ufe::Attribute::sceneItem ( ) const

Returns: The object's SceneItem.

◆ setMetadata()

virtual bool Ufe::Attribute::setMetadata	(	const std::string &	key,
		const Value &	value
	)

pure virtual

Set the metadata key's value to value.

Parameters

[in]	key	The metadata key to set.
[in]	value	The value to set.

Returns: True if the metadata was set successfully, otherwise false.

◆ setMetadataCmd()

virtual UndoableCommand::Ptr Ufe::Attribute::setMetadataCmd	(	const std::string &	key,
		const Value &	value
	)

virtual

Return a command for undo / redo that sets the metadata key's value to value. The returned command is not executed; it is up to the caller to call execute().

◆ string()

virtual std::string Ufe::Attribute::string ( ) const

pure virtual

Returns: The string representation of the attribute value.

◆ type()

virtual Type Ufe::Attribute::type ( ) const

pure virtual

Returns: The attributes type.

Implemented in Ufe::TypedAttribute< T >, Ufe::AttributeEnumString, Ufe::AttributeFilename, and Ufe::AttributeGeneric.

Member Data Documentation

◆ fItem

const SceneItem::Ptr Ufe::Attribute::fItem

private

Definition at line 158 of file attribute.h.

◆ kBool

constexpr char Ufe::Attribute::kBool[] = "Bool"

static

Definition at line 46 of file attribute.h.

◆ kColorFloat3

constexpr char Ufe::Attribute::kColorFloat3[] = "ColorFloat3"

static

Definition at line 51 of file attribute.h.

◆ kColorFloat4

constexpr char Ufe::Attribute::kColorFloat4[] = "ColorFloat4"

static

Definition at line 52 of file attribute.h.

◆ kDouble

constexpr char Ufe::Attribute::kDouble[] = "Double"

static

Definition at line 49 of file attribute.h.

◆ kDouble3

constexpr char Ufe::Attribute::kDouble3[] = "Double3"

static

Definition at line 59 of file attribute.h.

◆ kEnumString

constexpr char Ufe::Attribute::kEnumString[] = "EnumString"

static

Definition at line 54 of file attribute.h.

◆ kFilename

constexpr char Ufe::Attribute::kFilename[] = "Filename"

static

Definition at line 53 of file attribute.h.

◆ kFloat

constexpr char Ufe::Attribute::kFloat[] = "Float"

static

Definition at line 48 of file attribute.h.

◆ kFloat2

constexpr char Ufe::Attribute::kFloat2[] = "Float2"

static

Definition at line 56 of file attribute.h.

◆ kFloat3

constexpr char Ufe::Attribute::kFloat3[] = "Float3"

static

Definition at line 57 of file attribute.h.

◆ kFloat4

constexpr char Ufe::Attribute::kFloat4[] = "Float4"

static

Definition at line 58 of file attribute.h.

◆ kGeneric

constexpr char Ufe::Attribute::kGeneric[] = "Generic"

static

Definition at line 62 of file attribute.h.

◆ kInt

constexpr char Ufe::Attribute::kInt[] = "Int"

static

Definition at line 47 of file attribute.h.

◆ kInt3

constexpr char Ufe::Attribute::kInt3[] = "Int3"

static

Definition at line 55 of file attribute.h.

◆ kInvalid

constexpr char Ufe::Attribute::kInvalid[] = "Invalid"

static

Definition at line 45 of file attribute.h.

◆ kLocked

constexpr char Ufe::Attribute::kLocked[] = "Locked"

static

Metadata key: Locked, value type = bool
A locked attribute value cannot be changed.

Definition at line 112 of file attribute.h.

◆ kMatrix3d

constexpr char Ufe::Attribute::kMatrix3d[] = "Matrix3d"

static

Definition at line 60 of file attribute.h.

◆ kMatrix4d

constexpr char Ufe::Attribute::kMatrix4d[] = "Matrix4d"

static

Definition at line 61 of file attribute.h.

◆ kString

constexpr char Ufe::Attribute::kString[] = "String"

static

Definition at line 50 of file attribute.h.

The documentation for this class was generated from the following file:

common/include/ufe/attribute.h
