What's New in Autodesk Robot Structural Analysis Professional 2024

Learn about new features and improvements in the latest release of Autodesk Robot Structural Analysis Professional.

Highlights

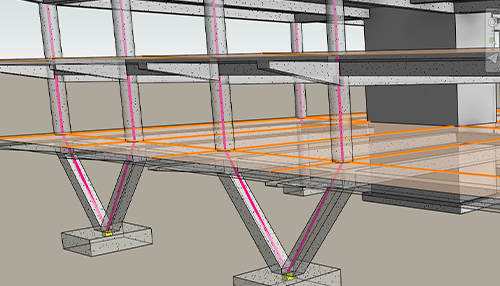

Integration with the Revit Contextual Analytical Model

You can control and accurately create your analytical model in the context of any structural physical model geometries.

Improved Load Distribution from Cladding to Members and Walls

Load distribution from claddings to beams, columns, and panels was improved in terms of quality and performance.

Seismic Analysis for Canada

The current Canadian code NBCC 2015 was implemented for seismic analysis.

Required Reinforcement Software Development Kit Enhancement

Use the Required Reinforcement Software Development Kit (SDK) to add your own analysis design codes to Robot Structural Analysis (RSA).

More Features

Seismic Analysis Enhancements

Seismic analysis according to the current codes was enhanced.

Load Combination Regional Code Updates

The current national annexes for load combinations according to Eurocode 1990 were implemented..

Improvements to the Steel and Timber Design

This release of Robot Structural Analysis Professional includes several improvements to Steel and Timber member design and optimization.

Reinforce Concrete Design for France

Required and Provided reinforcement design according to the NF EN 1992-1-1/NA March 2016 edition was implemented.

Reinforce Concrete Design for Poland

Required and Provided reinforcement design according to the PN-EN 1992-1-1:2008/Ap3:2018-08 edition was implemented.

Reinforced Concrete Design Improvements

Additional enhancements have been introduced to the concrete design modules according to the ACI 318 standard.

Updated Regional Settings for France

The default Regional Settings for France have been updated to the current requirements related to the use of Eurocodes.

Updated the Verification Manuals according to NAFEMS and AFNOR

You can find updated verification manuals according to NAFEMS and AFNOR benchmark tests.

For technical details, performance enhancements, and fixes, see the release notes.

Earlier Versions

If you are looking for new feature information in earlier versions of Autodesk Robot Structural Analysis Professional, please refer to the help documentation archive.
