Exercise 3: Assigning Pay Item Codes to Pipe Network Parts

In this exercise, you will modify a parts list to assign pay item codes to pipe network parts as they are created. You will also learn how to assign pay item codes to existing pipe network parts.

This exercise continues from Exercise 2: Assigning Pay Item Codes to AutoCAD Objects.

Specify the QTO command settings

1. Open Quantities-3.dwg, which is located in the tutorials drawings folder.

   This drawing contains a commercial site, which consists of a building footprint, a parking lot, and access roads. The site also contains a storm sewer network that has pipes and several types of structures.

2. Click Analyze tab QTO panel QTO Manager Find.
3. In the QTO Manager vista, click .
4. In the Quantity Takeoff Command Settings dialog box, under Compute Takeoff Options, specify the following parameters:
   • Computation Type: 3D
   • Pipe Length Type: To Inside Edges

   These parameters specify that the pipe lengths will be reported, using the end-to-end distance, from the inside edge of each structure.

5. Click OK.

Add pay item codes to a pipe network

1. In the drawing, select a pipe network part. Click Pipe Networks tab Modify panel Network Properties Find.
2. In the Pipe Network Properties dialog box, on the Layout Settings tab, under Network Parts List, click Edit Current Selection.
3. In the Network Parts List dialog box, on the Pipes tab, expand the Storm Sewer Concrete Pipe category.
4. In the 18 inch RCP row, click .
5. In the Pay Item List dialog box, expand the Favorites category.
6. In the Favorites category, select Pay Item ID60201-0600.
7. Click OK.
8. Click the Structures tab.
9. Repeat Steps 4 through 7 to assign pay items to the following structures:

   Structure	Pay Item ID
   51 x 6 x 51 inch Concrete Rectangular Headwall Mat_CONC	60103-0100
   Eccentric Structure 48 dia 24 frame 24 cone 5 wall 6 floor Mat_CONC	60403-1100 60409-0500

10. Click OK three times.

Add parts with pay items to the pipe network

1. In the drawing, select a pipe. Click Pipe Networks tab Modify panel Edit Pipe Network Find.
2. On the Network Layout Tools toolbar, specify the following parameters:
   • Structure: Eccentric Structure 48 dia 24 frame 24 cone 5 wall 6 floor Mat_CONC
   • Pipe: 18 inch RCP
   • Pipes and Structures: Selected

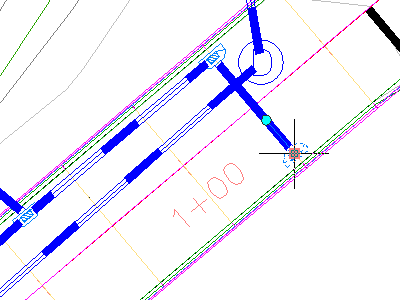

3. In the drawing, click two points.

   This action creates two structures that are connected by a pipe.

4. Press Enter.

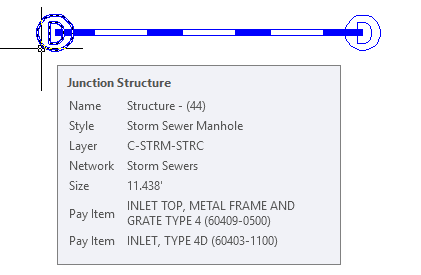

5. Hover the cursor over one of the new structures.

   The tooltip displays the description and ID of each pay item that has been assigned to that structure.



Assign pay items to existing pipe network parts

1. In the drawing, select one of the catch basins along the road.

2. Right-click. Click Select Similar.
3. In the QTO Manager vista, click .
4. In the Favorites category, select Pay Item IDs 60403-1100 and 60409-0500.
5. Press Enter.

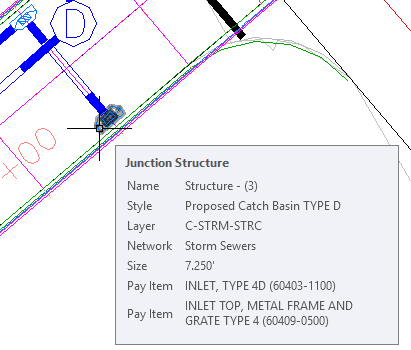

6. Hover the cursor over one of the catch basins.

   The tooltip displays the description and ID of the pay items that have been assigned to the catch basin.



   Further exploration: Repeat this procedure on the other structures in the network, assigning pay item codes that are appropriate for the square catch basins, manholes, and headwalls.

To continue this tutorial, go to Exercise 4: Assigning Pay Item Codes to Corridors.
