FBSpread Class Reference

Base spreadsheet class. More...

#include <pyfbsdk_generated.h>

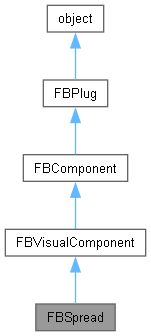

Inheritance diagram for FBSpread:

Public Member Functions

 FBSpread ()
 Constructor.

 Clear ()
 Clear spreadsheet This function will empty spreadsheet of all its rows, columns and cells.

 ColumnAdd (str pString, kReference pRef=0)
 Add a column.

 GetCellView (kReference pRef, int pColumn, HIKtView pView)
 Get a cell's internal toolkit view.

FBSpreadColumn GetColumn (int pColumn)
 Get a column from a column number.

int GetColumnCount ()
 Get the column count.

FBSpreadCell GetCurrentCell ()
 Get the current cell.

FBSpreadRow GetRow (kReference pRef)
 Get a row from a row reference.

int GetRowCount ()
 Get the row count.

 Home ()
 Position the vertical scrollbar of the spreadsheet to the top.

 RowAdd (str pString, kReference pRef=0)
 Add a row.

 RowSort (bool pAscending=True)
 Sort rows.

 SetCellView (kReference pRef, int pColumn, HIKtView pView)
 Set a cell's internal toolkit view.

- Public Member Functions inherited from FBVisualComponent
 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

str Caption
 Read Write Property: Caption to display for spreadsheet.


int Column
 Read Write Property: Current column.


bool MultiSelect
 Read Write Property: Can there be multiple selections?


FBEvent OnCellChange
 Event: Cell value changed.


FBEvent OnColumnClick
 Event: Column clicked.


FBEvent OnDragAndDrop
 Event: Drag and drop event.


FBEvent OnRowClick
 Event: Row clicked.


FBkReference Row
 Read Write Property: Current row.


- Public Attributes inherited from FBVisualComponent
str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Constructor & Destructor Documentation

◆ FBSpread()

FBSpread ( )

Constructor.

Member Function Documentation

◆ Clear()

Clear ( )

Clear spreadsheet This function will empty spreadsheet of all its rows, columns and cells.

◆ ColumnAdd()

ColumnAdd ( str  pString,
kReference  pRef = 0
)

Add a column.

By default, the newly created column will use the FBCellStyle.kFBCellStyleString style. Modify the Style property to modify the column's style.

Parameters
pStringText to display with column.
pRefUser-define column reference number(default=0).

◆ GetCellView()

GetCellView ( kReference  pRef,
int  pColumn,
HIKtView  pView
)

Get a cell's internal toolkit view.

Parameters
pRefRow of cell.
pColumnColumn of cell.
pViewHandle of view.

◆ GetColumn()

FBSpreadColumn GetColumn ( int  pColumn)

Get a column from a column number.

Parameters
pColumnColumn number.
Returns
A copy of column.

◆ GetColumnCount()

int GetColumnCount ( )

Get the column count.

Returns
The column count.

◆ GetCurrentCell()

FBSpreadCell GetCurrentCell ( )

Get the current cell.

Returns
A copy of the the current cell.

◆ GetRow()

FBSpreadRow GetRow ( kReference  pRef)

Get a row from a row reference.

Parameters
pRefReference to a row.
Returns
A copy of the row.

◆ GetRowCount()

int GetRowCount ( )

Get the row count.

Returns
The row count.

◆ Home()

Home ( )

Position the vertical scrollbar of the spreadsheet to the top.

◆ RowAdd()

RowAdd ( str  pString,
kReference  pRef = 0
)

Add a row.

Parameters
pStringText to display with row.
pRefUser-defined reference for row(default=0).

◆ RowSort()

RowSort ( bool  pAscending = True)

Sort rows.

Parameters
pAscendingIf true, sort ascending.

◆ SetCellView()

SetCellView ( kReference  pRef,
int  pColumn,
HIKtView  pView
)

Set a cell's internal toolkit view.

Parameters
pRefRow of cell.
pColumnColumn of cell.
pViewView to use to set cell's view.

Member Data Documentation

◆ Caption

str Caption

Read Write Property: Caption to display for spreadsheet.

◆ Column

int Column

Read Write Property: Current column.

◆ MultiSelect

bool MultiSelect

Read Write Property: Can there be multiple selections?

◆ OnCellChange

FBEvent OnCellChange

Event: Cell value changed.

◆ OnColumnClick

FBEvent OnColumnClick

Event: Column clicked.

◆ OnDragAndDrop

FBEvent OnDragAndDrop

Event: Drag and drop event.

◆ OnRowClick

FBEvent OnRowClick

Event: Row clicked.

◆ Row

FBkReference Row

Read Write Property: Current row.
