Animates a character face using an actor as input. More...

#include <pyfbsdk.h>

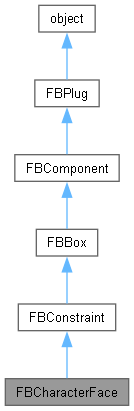

Inheritance diagram for FBCharacterFace:

[legend]

Public Member Functions
	FBCharacterFace (str pName)
	Constructor.

int	ClusterGroupAdd (FBModelList pList, str pName=None)
	Add a cluster group to the character face.

int	ClusterGroupFindByName (str pName)
	Find a cluster group by name.

int	ClusterGroupGetCount ()
	Retrieve the total number of cluster groups.

str	ClusterGroupGetName (int pClusterGrpId)
	Retrieve the name of a cluster group.

bool	ClusterGroupRemove (int pClusterGrpId)
	Remove a cluster group from the character face.

bool	ClusterGroupSetName (int pClusterGrpId, str pName)
	Set the name of a cluster group.

bool	ClusterGroupSnapRest (int pClusterGrpId)
	Set a cluster group's rest pose to the current pose.

int	ClusterShapeAdd (int pClusterGrpId, str pName=None)
	Add a cluster shape to a cluster group.

int	ClusterShapeFindByName (int pClusterGrpId, str pName)
	Find a cluster shape in a cluster group by name.

int	ClusterShapeGetCount (int pClusterGrpId)
	Retrieve the total number of shapes in a cluster group.

str	ClusterShapeGetName (int pClusterGrpId, int pClusterShapeId)
	Retrieve the name of a shape in a cluster group.

bool	ClusterShapeRemove (int pClusterGrpId, int pClusterShapeId)
	Remove a cluster shape from a cluster group.

bool	ClusterShapeSetName (int pClusterGrpId, int pClusterShapeId, str pName)
	Set the name of a shape in a cluster group.

bool	ClusterShapeSnap (int pClusterGrpId, int pClusterShapeId)
	Record the current pose of the cluster group to a cluster shape.

int	ExpressionAdd (str pName)
	Add an expression to the face.

int	ExpressionFindByName (str pName)
	Find an expression on the face by name.

int	ExpressionGetCount ()
	Retrieve the total number of expressions on the face.

str	ExpressionGetName (int pExpressionId)
	Retrieve the name of an expression.

float	ExpressionGetShapeWeight (int pExpressionId, int pGrpId, int pShapeId)
	Retrieve the weight of a shape to an expression.

bool	ExpressionRemove (int pExpressionId)
	Remove an expression from the face.

bool	ExpressionSetName (int pExpressionId, str pName)
	Set the name of an expression.

bool	ExpressionSetShapeWeight (int pExpressionId, int pGrpId, int pShapeId, float pValue=0.0f)
	Assign the weight of a shape to an expression.

	FBDelete ()
	Actual Character Face destructor.

	GotoRest ()
	Set the character face back to its rest shape.

bool	PlotAnimation ()
	Plot the animation of the character face.

int	ShapeFindByName (int pShapeGrpId, str pName)
	Find a shape in a blendshape group by name.

int	ShapeGetCount (int pShapeGrpId)
	Retrieve the total number of shapes in a blendshape group.

str	ShapeGetName (int pShapeGrpId, int pShapeId)
	Retrieve the name of the shape in a blendshape group.

bool	ShapeGroupAdd (FBModelList pList, str pName=None)
	Add a blendshape model group for each input model.

int	ShapeGroupFindByName (str pName)
	Find a blendshape group by name.

int	ShapeGroupGetCount ()
	Retrieve the total number of blendshape groups on this character face.

str	ShapeGroupGetName (int pShapeGrpId)
	Retrieve the name of a blendshape group.

bool	ShapeGroupRemove (int pShapeGrpId)
	Remove a blendshape model group.

bool	ShapeGroupSetName (int pShapeGrpId, str pName)
	Set the name of a blendshape group.

bool	ShapeSetName (int pShapeGrpId, int pShapeId, str pName)
	Set the name of the shape in a blendshape group.

Public Member Functions inherited from FBConstraint
	FBConstraint (str pName)
	Constructor.

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
	Animation Node Creations (IN).

FBAnimationNode	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT).

FBConstraint	Clone ()
	Clone the constraint.

bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint.

bool	DeformerUnBind (FBModel pModel)

bool	Disable (FBModel pModel)
	Disable constraint on pModel.

	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state.

	FreezeSuggested ()
	Suggest 'freeze'.

bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group.

FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference.

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group.

int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references.

int	ReferenceGroupGetCount ()
	Return the number of reference groups.

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question.

str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group.

bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex.

	RemoveAllAnimationNodes ()
	Remove animation nodes.

	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel.

	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel.

	SetupAllAnimationNodes ()
	Setup animation nodes.

	SnapSuggested ()
	Suggest 'snap'.

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
bool	ActiveInput
	Read Write Property: Is the character input active?

FBActorFace	InputActorFace
	Read Write Property: The index of the actor used for the input.

Public Attributes inherited from FBConstraint
bool	Active
	Read Write Property: Active state.

bool	Deformer
	Read Write Property: Is a deformer constraint?

str	Description
	Read Write Property: Long description of constraint.

bool	HasLayout
	Read Write Property: Does the constraint have a layout?

bool	Lock
	Read Write Property: Lock state.

FBAction	Snap
	Function Property: Snap constraint.

FBAnimatableDouble	Weight
	Read Write Property: Weight of constraint.

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

Animates a character face using an actor as input.

These classes are under development and may change dramatically between versions.

Constructor & Destructor Documentation

◆ FBCharacterFace()

FBCharacterFace ( str pName )

Constructor.

Parameters

pName Name of new character.

Member Function Documentation

◆ ClusterGroupAdd()

int ClusterGroupAdd	(	FBModelList	pList,
		str	pName = `None`
	)

Add a cluster group to the character face.

Parameters

pList	List of clusters to add to this group.
pName	Optional name to assign to this cluster group.

Returns: Index of the new cluster group -1 if the operation failed to complete.

◆ ClusterGroupFindByName()

int ClusterGroupFindByName ( str pName )

Find a cluster group by name.

Parameters

pName Name to search for on the face.

Returns: Index of the matching cluster group. -1 if not found.

◆ ClusterGroupGetCount()

int ClusterGroupGetCount ( )

Retrieve the total number of cluster groups.

Returns: Number of cluster groups on the face.

◆ ClusterGroupGetName()

str ClusterGroupGetName ( int pClusterGrpId )

Retrieve the name of a cluster group.

Parameters

pClusterGrpId Index of the cluster group to query.

Returns: Name of the specified cluster group.

◆ ClusterGroupRemove()

bool ClusterGroupRemove ( int pClusterGrpId )

Remove a cluster group from the character face.

Parameters

pClusterGrpId Index of the cluster group to remove.

Returns: True if the operation completed successfully.

◆ ClusterGroupSetName()

bool ClusterGroupSetName	(	int	pClusterGrpId,
		str	pName
	)

Set the name of a cluster group.

Parameters

pClusterGrpId	Index of the cluster group to modify.
pName	New name for the cluster group.

Returns: True of the operation completed successfully.

◆ ClusterGroupSnapRest()

bool ClusterGroupSnapRest ( int pClusterGrpId )

Set a cluster group's rest pose to the current pose.

Parameters

pClusterGrpId Index of the cluster group to modify.

Returns: True if the operation completed succesfully.

◆ ClusterShapeAdd()

int ClusterShapeAdd	(	int	pClusterGrpId,
		str	pName = `None`
	)

Add a cluster shape to a cluster group.

Parameters

pClusterGrpId	Index of the cluster group to modify.
pName	Optional name to assign to the shape.

Returns: Index of the new shape. -1 if the operation failed to complete.

◆ ClusterShapeFindByName()

int ClusterShapeFindByName	(	int	pClusterGrpId,
		str	pName
	)

Find a cluster shape in a cluster group by name.

Parameters

pClusterGrpId	Index of the cluster group to search.
pName	Name to search for in the cluster group.

Returns: Index of the matching shape. -1 if not found.

◆ ClusterShapeGetCount()

int ClusterShapeGetCount ( int pClusterGrpId )

Retrieve the total number of shapes in a cluster group.

Parameters

pClusterGrpId Index of the cluster group to query.

Returns: Number of shapes in the specified cluster group.

◆ ClusterShapeGetName()

str ClusterShapeGetName	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Retrieve the name of a shape in a cluster group.

Parameters

pClusterGrpId	Index of the cluster group to query.
pClusterShapeId	Index of the cluster shape to query.

Returns: Name of the specified shape.

◆ ClusterShapeRemove()

bool ClusterShapeRemove	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Remove a cluster shape from a cluster group.

Parameters

pClusterGrpId	Index of the cluster group to modify.
pClusterShapeId	Index of the shape in the cluster group to remove.

Returns: True of the operation completed succesfully.

◆ ClusterShapeSetName()

bool ClusterShapeSetName	(	int	pClusterGrpId,
		int	pClusterShapeId,
		str	pName
	)

Set the name of a shape in a cluster group.

Parameters

pClusterGrpId	Index of the cluster group to modify.
pClusterShapeId	Index of the cluster shape to modify.
pName	Name to assign to the cluster shape.

Returns: True if the operation completed successfully.

◆ ClusterShapeSnap()

bool ClusterShapeSnap	(	int	pClusterGrpId,
		int	pClusterShapeId
	)

Record the current pose of the cluster group to a cluster shape.

Parameters

pClusterGrpId	Index of the cluster group to record.
pClusterShapeId	Index of the cluster shape to record the pose.

Returns: True if the operation completed successfully.

◆ ExpressionAdd()

int ExpressionAdd ( str pName )

Add an expression to the face.

Parameters

pName Optional name to assign to the new expression.

Returns: Index of the new expression. -1 if the operation failed to complete.

◆ ExpressionFindByName()

int ExpressionFindByName ( str pName )

Find an expression on the face by name.

Parameters

pName Name of the expression to search for.

Returns: Index of the matching expression. -1 if not found.

◆ ExpressionGetCount()

int ExpressionGetCount ( )

Retrieve the total number of expressions on the face.

Returns: Number of expressions on the face.

◆ ExpressionGetName()

str ExpressionGetName ( int pExpressionId )

Retrieve the name of an expression.

Parameters

pExpressionId Index of the expression to query.

Returns: Name of the specified expression.

◆ ExpressionGetShapeWeight()

float ExpressionGetShapeWeight	(	int	pExpressionId,
		int	pGrpId,
		int	pShapeId
	)

Retrieve the weight of a shape to an expression.

Parameters

pExpressionId	Index of the expression.
pGrpId	Index of the blendshape or cluster group containing the shape of interest.
pShapeId	Index of the blendshape or cluster shape.

Returns: Weight of the desired shape to an expression. A weight of 0.0 represents 0%, while a weight of 1.0 represents 100%. Returns 0.0 if the weight cannot be found.

◆ ExpressionRemove()

bool ExpressionRemove ( int pExpressionId )

Remove an expression from the face.

Parameters

pExpressionId Index of the expression to remove.

Returns: True if the operation completed successfully.

◆ ExpressionSetName()

bool ExpressionSetName	(	int	pExpressionId,
		str	pName
	)

Set the name of an expression.

Parameters

pExpressionId	Index of the expression to modify.
pName	Name to assign to the expression.

Returns: True if the operation completed successfully.

◆ ExpressionSetShapeWeight()

bool ExpressionSetShapeWeight	(	int	pExpressionId,
		int	pGrpId,
		int	pShapeId,
		float	pValue = `0.0f`
	)

Assign the weight of a shape to an expression.

Parameters

pExpressionId	Index of the expression to modify.
pGrpId	Index of the blendshape or cluster group containing the shape of interest.
pShapeId	Index of the blendshape or cluster shape to weight.
pValue	Weight of the shape to assign to this expression. A weight of 0.0 represents 0%, while a weight of 1.5 represents 150%. The weight cannot be less than 0.0; if so, the weight will be clamped to 0.0.

Returns: True if the operation completed successfully.

◆ FBDelete()

FBDelete ( )

Actual Character Face destructor.

This method is used to delete the actual character face object represented by an instance of FBCharacterFace.

See sample: DeleteHierarchy.py.

◆ GotoRest()

GotoRest ( )

Set the character face back to its rest shape.

◆ PlotAnimation()

bool PlotAnimation ( )

Plot the animation of the character face.

Returns: True if the operation completed successfully.

◆ ShapeFindByName()

int ShapeFindByName	(	int	pShapeGrpId,
		str	pName
	)

Find a shape in a blendshape group by name.

Parameters

pShapeGrpId	Index of the blendshape group to search.
pName	Name to search for.

Returns: Index of the shape, -1 if not found.

◆ ShapeGetCount()

int ShapeGetCount ( int pShapeGrpId )

Retrieve the total number of shapes in a blendshape group.

Parameters

pShapeGrpId Index of the blendshape group to query.

Returns: Number of shapes in the specified blendshape group.

◆ ShapeGetName()

str ShapeGetName	(	int	pShapeGrpId,
		int	pShapeId
	)

Retrieve the name of the shape in a blendshape group.

Parameters

pShapeGrpId	Index of the blendshape group to query.
pShapeId	Index of the shape in the blendshape group to query.

Returns: Name of the specified shape.

◆ ShapeGroupAdd()

bool ShapeGroupAdd	(	FBModelList	pList,
		str	pName = `None`
	)

Add a blendshape model group for each input model.

Parameters

pList	List of models to create a blendshape model group.
pName	Unused. Instead, use the ShapeGroupGetName member function to set the name of each added blendshape model group individually.

Returns: True if the operation completed successfully, false otherwise.

◆ ShapeGroupFindByName()

int ShapeGroupFindByName ( str pName )

Find a blendshape group by name.

Parameters

pName Name to search for.

Returns: Index of the blendshape group, -1 if not found.

◆ ShapeGroupGetCount()

int ShapeGroupGetCount ( )

Retrieve the total number of blendshape groups on this character face.

Returns: Number of blendshape groups on this character face.

◆ ShapeGroupGetName()

str ShapeGroupGetName ( int pShapeGrpId )

Retrieve the name of a blendshape group.

Parameters

pShapeGrpId Index of the blendshape group to query.

Returns: Name of the blendshape group.

◆ ShapeGroupRemove()

bool ShapeGroupRemove ( int pShapeGrpId )

Remove a blendshape model group.

Parameters

pShapeGrpId Index of the blendshape group to remove.

Returns: True if the operation completed successfully.

◆ ShapeGroupSetName()

bool ShapeGroupSetName	(	int	pShapeGrpId,
		str	pName
	)

Set the name of a blendshape group.

Parameters

pShapeGrpId	Index of the blendshape group to modify.
pName	Name to set on the blendshape group.

Returns: True if the operation completed successfully.

◆ ShapeSetName()

bool ShapeSetName	(	int	pShapeGrpId,
		int	pShapeId,
		str	pName
	)

Set the name of the shape in a blendshape group.

Parameters

pShapeGrpId	Index of the blendshape group to query.
pShapeId	Index of the shape in the blendshape group to set.
pName	Name to set on the shape.

Returns: True if the operation completed successfully.

Member Data Documentation

◆ ActiveInput

bool ActiveInput

Read Write Property: Is the character input active?

◆ InputActorFace

FBActorFace InputActorFace

Read Write Property: The index of the actor used for the input.

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FBCharacterFace()

Member Function Documentation

◆ ClusterGroupAdd()

◆ ClusterGroupFindByName()

◆ ClusterGroupGetCount()

◆ ClusterGroupGetName()

◆ ClusterGroupRemove()

◆ ClusterGroupSetName()

◆ ClusterGroupSnapRest()

◆ ClusterShapeAdd()

◆ ClusterShapeFindByName()

◆ ClusterShapeGetCount()

◆ ClusterShapeGetName()

◆ ClusterShapeRemove()

◆ ClusterShapeSetName()

◆ ClusterShapeSnap()

◆ ExpressionAdd()

◆ ExpressionFindByName()

◆ ExpressionGetCount()

◆ ExpressionGetName()

◆ ExpressionGetShapeWeight()

◆ ExpressionRemove()

◆ ExpressionSetName()

◆ ExpressionSetShapeWeight()

◆ FBDelete()

◆ GotoRest()

◆ PlotAnimation()

◆ ShapeFindByName()

◆ ShapeGetCount()

◆ ShapeGetName()

◆ ShapeGroupAdd()

◆ ShapeGroupFindByName()

◆ ShapeGroupGetCount()

◆ ShapeGroupGetName()

◆ ShapeGroupRemove()

◆ ShapeGroupSetName()

◆ ShapeSetName()

Member Data Documentation

◆ ActiveInput

◆ InputActorFace
