FEM Cooling Analysis Quick Start Tutorial

In this tutorial, you set up and run a finite element method (FEM) cooling analysis on a 4-cavity tool on the computer mouse cover. The FEM cooling analysis calculates both steady state and transient mold temperatures. Steady state is an average mold temperature. With transient, the mold temperature changes over time. In this tutorial, you run a steady state analysis.

Attention Download the files for this tutorial from Autodesk Knowledge Network - New User Quick Start tutorial.

In this tutorial, you will do the following:

Create a project
Import a study
Set the analysis sequence
Create the cooling lines
Create the mold boundary
Create the tetra mesh for the mold
Input the process settings and run the analysis
Review results

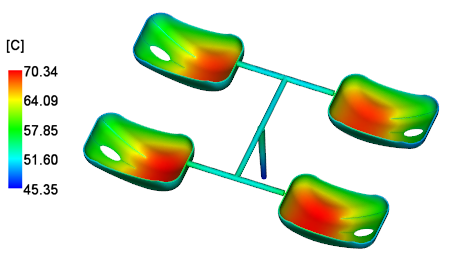

Mold Temperature
