The Settings Page of the Graph
Settings Dialog is used to define which network object types are
to be graphed and to specify the labelling to be used for the graph title
and axes.
Values to be plotted are defined in the Values
Page of the dialog.

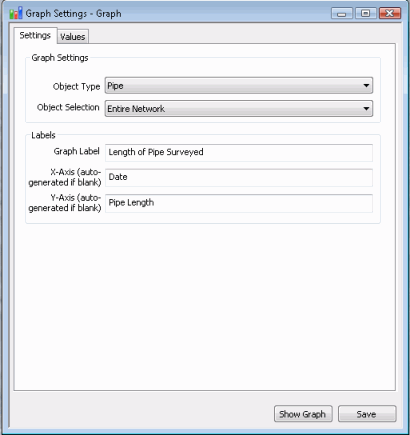

Show me
Graph Settings
This section is used to determine which network objects are to be graphed.
-
Object Type - dropdown
list of all network types for Collection, Distribution and Asset networks.
-
Object Selection - contains
options to restrict graphing of objects chosen in the Object
Type field to a selection of objects:
-
Entire Network -
graph all objects in the network of the type selected in the Object Type
field
-
Zone - only graph
the objects that are within the zone selected in the Zone field
-
Current Selection
- only graph the objects that are selected on the current GeoPlan Window
-
SQL Selection -
only graph the objects that satisfy the SQL query entered in the Selection Query box
-
Zone - displayed when
the Zone option is chosen from the Object
Selection field
-
Selection Query - displayed
when the SQL Selection option is chosen from
the Object Selection field. Enter an SQL query
to determine which objects are to be graphed. Click the Query
Editor button to display the Query
Editor Dialog to aid in building and testing the query.
Labels
This section is used to set up graph title and axes labels.
-
Graph Label - text entered
in this field will be used as the graph title
-
X-Axis - text entered
in this field will be used as the x-axis label. If the field is left blank
a label will be automatically generated
-
Y-Axis - text entered
in this field will be used as the y-axis label. If the field is left blank
a label will be automatically generated (for graphs with a single trace).
